UA3200E High Precision Woodworking Table Saw With Sliding Table

Short Description:

The UA3200E sliding table saw is a woodworking machine with a sliding table that allows for smooth, precise cutting of large panels and wood boards. It uses a dual-blade structure to cut wood boards, with a small blade marking the board first, followed by a large blade. The small marking blade can also be used alone to cut grooves, eliminating the problem of chipping and burrs on the board. The saw blade can be tilted, not only for right angles, but also for effective cutting of 0°-45° boards. Why not invest in a sliding table saw today and see the difference for yourself. Contact us to learn more about the UA3200E sliding table saw.


Product Detail

Product Tags

Details

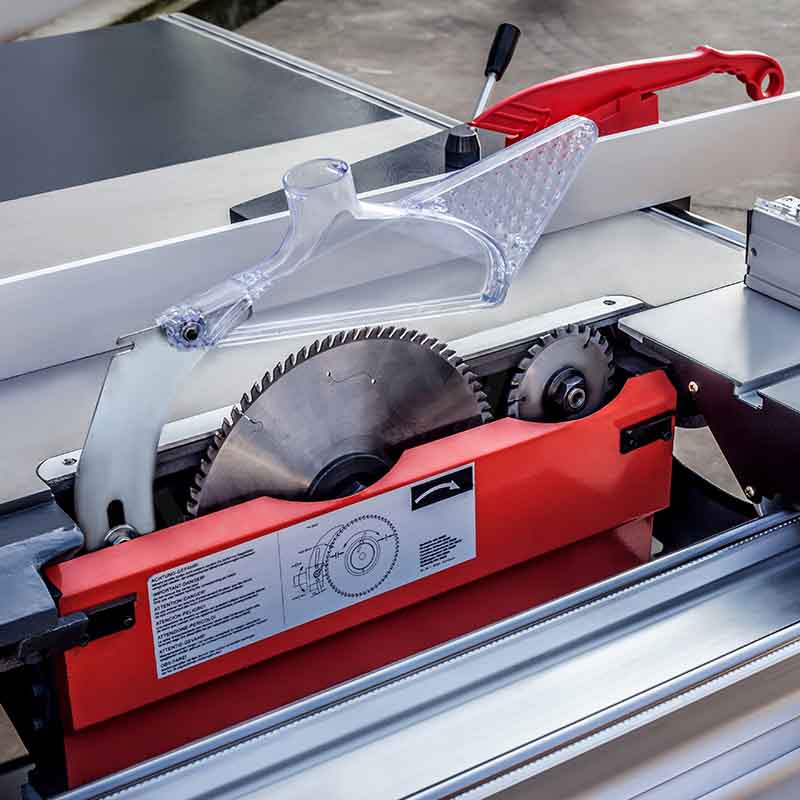

- The double saw blade structure of small marking saw blade + large saw blade will not cause burrs or edge bursting on the board.

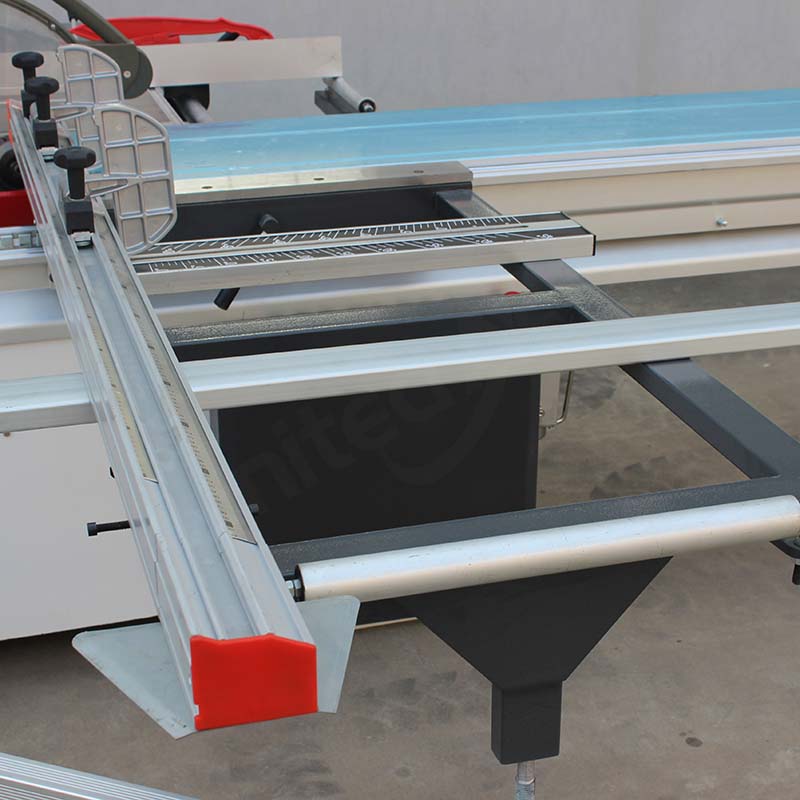

- The workbench is enlarged and widened to facilitate cutting of large boards.

- The large European ruler and aluminum alloy support rack can still run smoothly under heavy load.

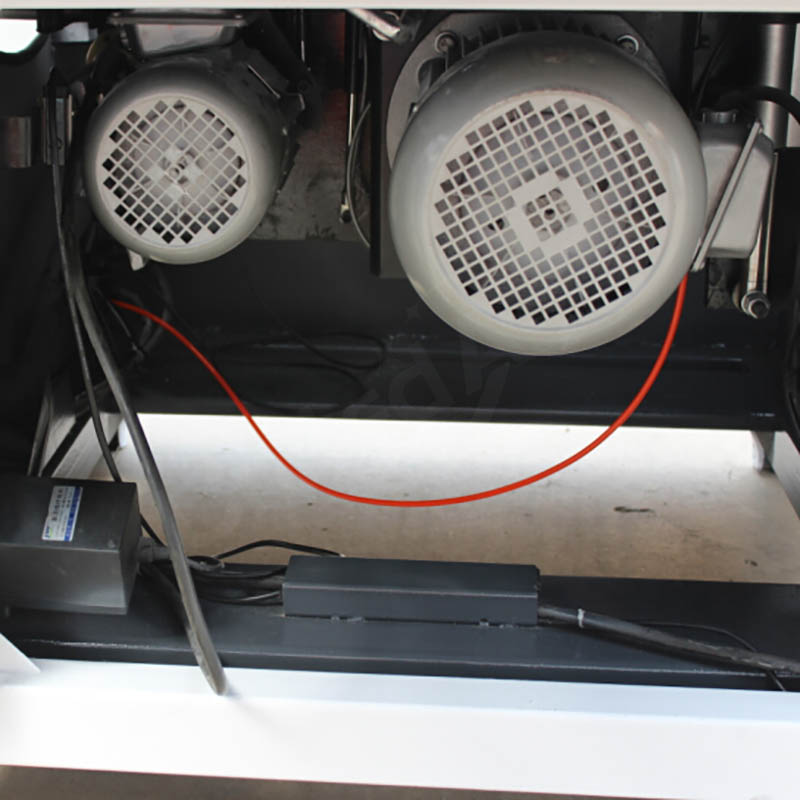

- The pure copper motor provides strong power for the machine and precise cutting.

Parameters

Model

UA3200E

Dimension of sliding table saw

3200x415mm

Gross cut capacity

3200mm

Width of cut between saw blade and ripe fence

1250mm

Saw blade

300mm

Height of cut 300mm

70mm

Speed of main saw blade

6000r.p.m

Tilling saw blade

45 Degree

Main motor

5.5kW(7.5HP)

Scoring saw blade diameter

120mm

Speed of scoring saw blade diameter

8000r/min

Scoring motor

1.1kW

Weight

780kg

Overall dimensions

3355x3175x1415mm

Loading 20GP

8SETS

Introduction

Are you a woodworking enthusiast or professional looking for a reliable and efficient tool to improve your craft? The UA3200E sliding table saw is your best choice. Unlike traditional table saws, the sliding table saw provides greater cutting power and higher stability, making it ideal for a variety of woodworking tasks.

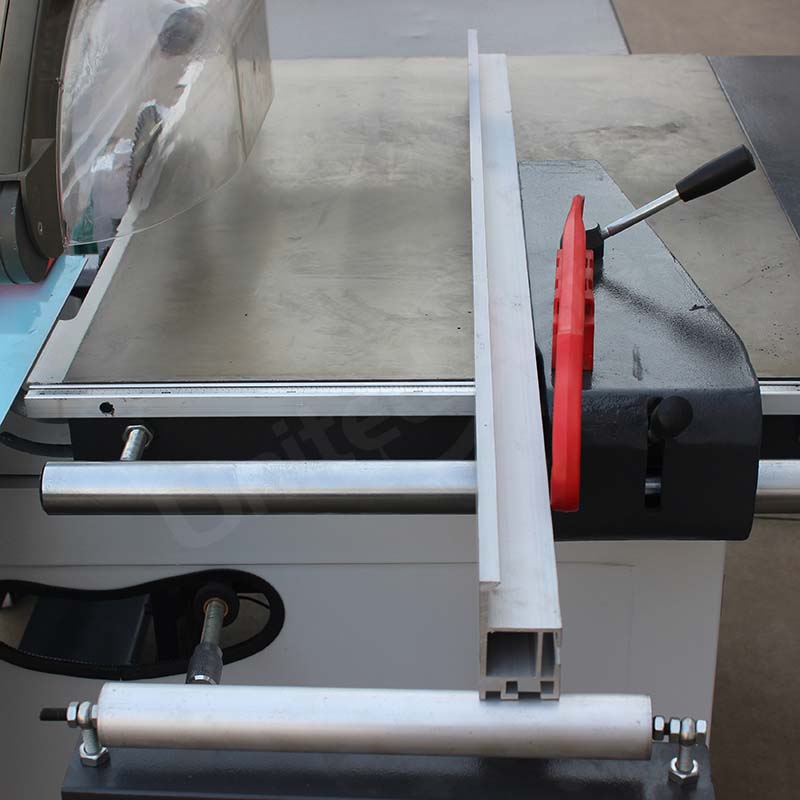

The extended and thickened body reduces vibration, improves service life and cutting accuracy. The pure copper large motor is selected to easily complete the specified work. The UA3200E sliding table saw adopts a double saw blade structure, with a small saw blade for marking and grooving, and a large saw blade for cutting boards. The machine can be raised and lowered and can be tilted 45° to cut wooden boards. It is equipped with a dust cover to prevent sawdust from splashing and causing a messy workshop environment. The push table adopts a round bar structure, with high positioning accuracy and smooth pushing. The European-style large ruler is stable and does not shift, and the mold base adopts a new internal structure, which is accurate and stable. Branded bearings increase the service life of the machine. The humanized control panel is simple and easy to learn. The push knife can keep hands away from the saw blade to ensure safety.

This versatile and powerful machine is a game changer in the woodworking industry, providing precision, safety, and ease of use to take your projects to the next level. Contact us to choose the right sliding table saw!
