UA2200S Table Saw With Sliding Table From China

Short Description:

Experience the future of woodworking with our UA2200S sliding table saw. The machine can be adjusted up and down and tilted at an angle, and adopts a double saw blade structure. Small saw blade for marking, large saw blade for cutting, precise cutting without edge collapse. All-copper motor, powerful power. The sliding table is more wear-resistant and has high bearing capacity. We provide one-stop service and provide you with high-quality UA2200S sliding table saw. Contact us to order.


Product Detail

Product Tags

Details

- Equipped with dust cover and pusher to avoid safety problems.

- Double saw blade structure, can cut at 45° tilt.

- More stable machine structure, ensures less vibration and noise when the machine is working.

- Thickened and weighted push table, push more smoothly.

- High-performance pure copper motor, lower failure rate.

Parameters

Model

UA2200S

Dimension of sliding table saw

2200x375mm

Gross cut capacity

2200mm

Width of cut between saw blade and ripe fence

1250mm

Saw blade

300mm(250-350)

Height of cut 300mm

70mm

Speed of main saw blade

6000r.p.m

Tilling saw blade

45 Degree

Main motor

4kw(5.5HP)

Scoring saw blade diameter

120mm

Speed of scoring saw blade diameter

8000r/min

Scoring motor

0.75kw(1HP)

Weight

600kg

Overall dimensions

2200x2550x900mm

Loading 20GP/40HQ

12SETS/24SETS

Introduction

Experience the difference our premium UA2200S sliding table saw can make for your woodworking projects. With the precision, versatility and reliability at the heart of our saws, you can unleash your creativity and achieve outstanding results in every cut.

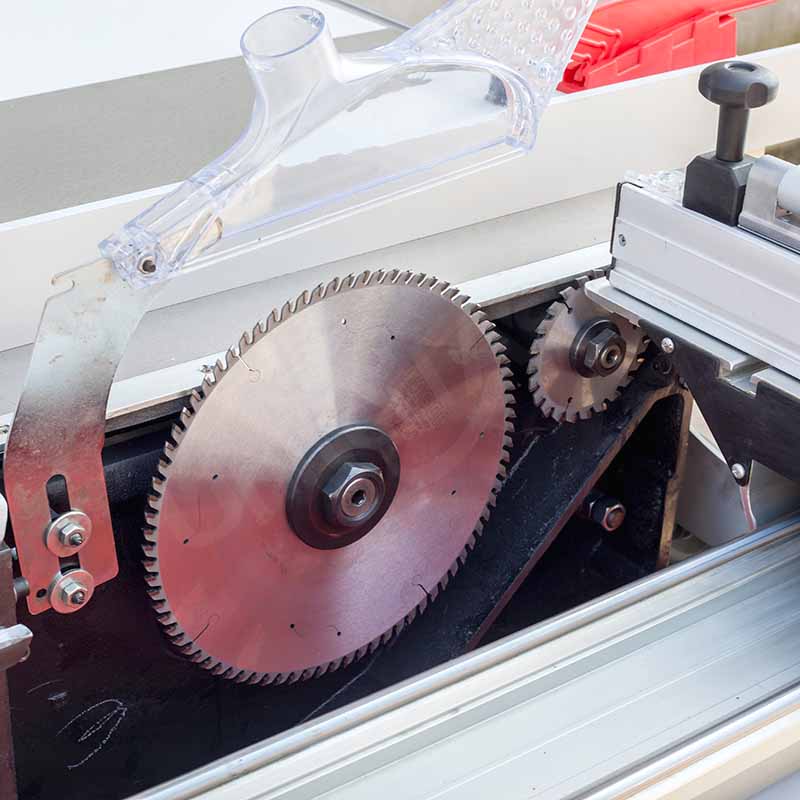

The UA2200S sliding table saw is made with European-style rulers and is fully refined. The baffle is precisely customized and pushes smoothly. The pure copper motor is more powerful and has a wider cutting range. The large saw is responsible for opening the board, and the small saw is responsible for marking, which can reduce the burrs and edge collapse of the board. The machine can be raised and lowered, and can cut at right angles and 45° bevels.

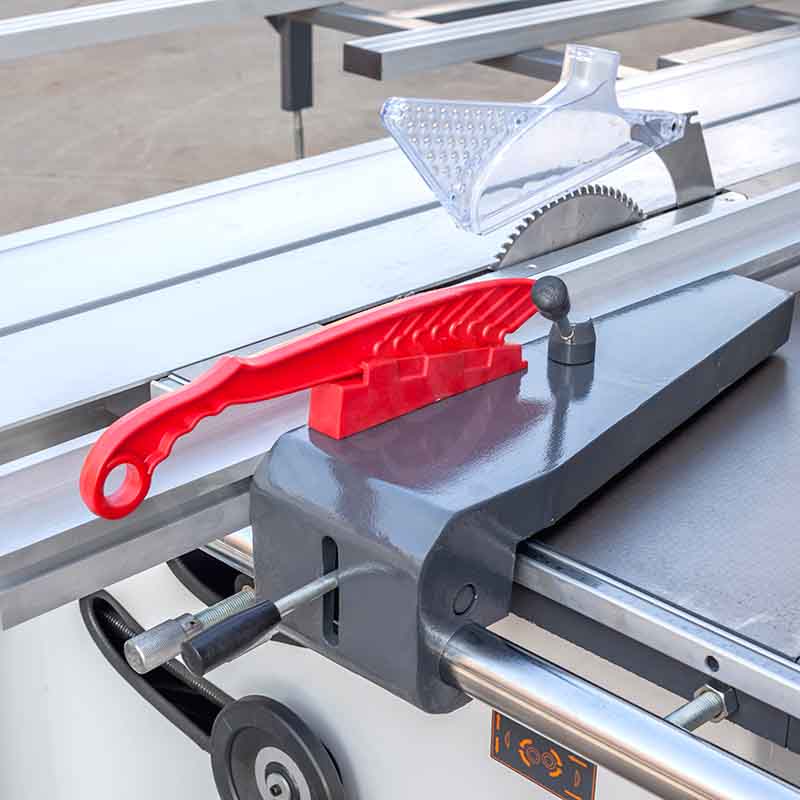

The entire machine body has been processed to ensure the stability and accuracy of the internal structure. The weighted work table is more stable. The upgraded control panel is easy to operate and can be used after simple training. It is equipped with a dust cover to prevent sawdust from flying and causing an unsanitary working environment. In addition, the machine is equipped with a push knife to keep the hands away from the saw blade to prevent accidental injuries caused by misaligned operation.

From precision cutting to multi-functional functions, our saws help you confidently and accurately turn your woodworking vision into reality. Enhance your woodworking experience and unleash your creativity with the power of the UA2200S sliding table saw. Contact us now to order!
