UA-6E Woodworking Automatic Edge Bander Machinery For Sale
Details
Pre-milling
Gluing
End cutting
Fine trimming
Scraping
Buffing
- Pre-milling device, re-processing the wave pattern marks, non-vertical phenomenon, burrs, burrs and edge collapse when sawing the board, improving the accuracy of the board and achieving better edge banding effect.

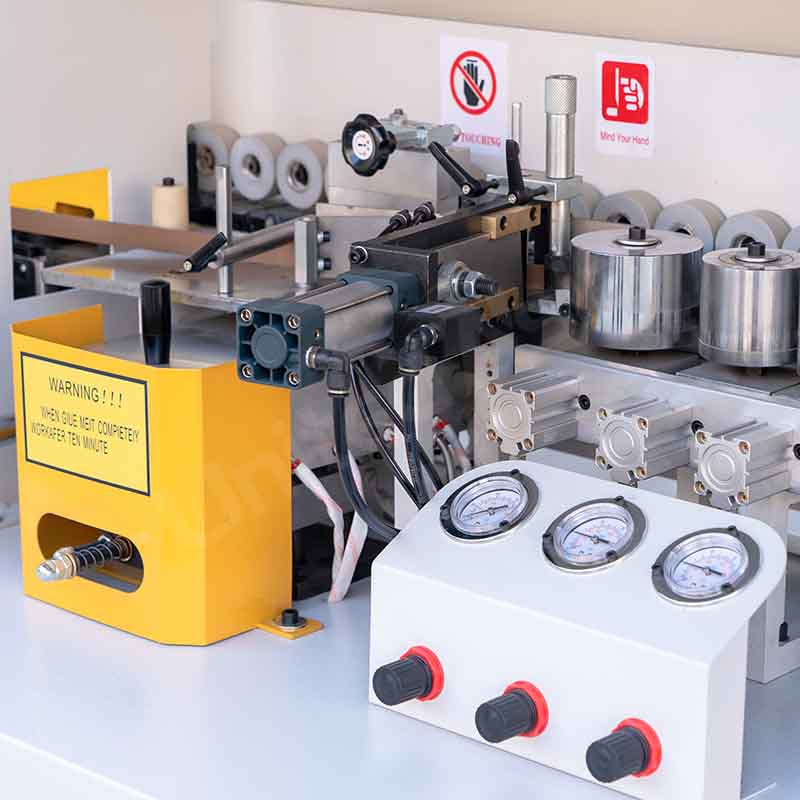

- Gluing device, evenly apply glue to the side of the board. At the same time, pressing can make the edge banding and the board bonded together, and the bonding force is stronger.

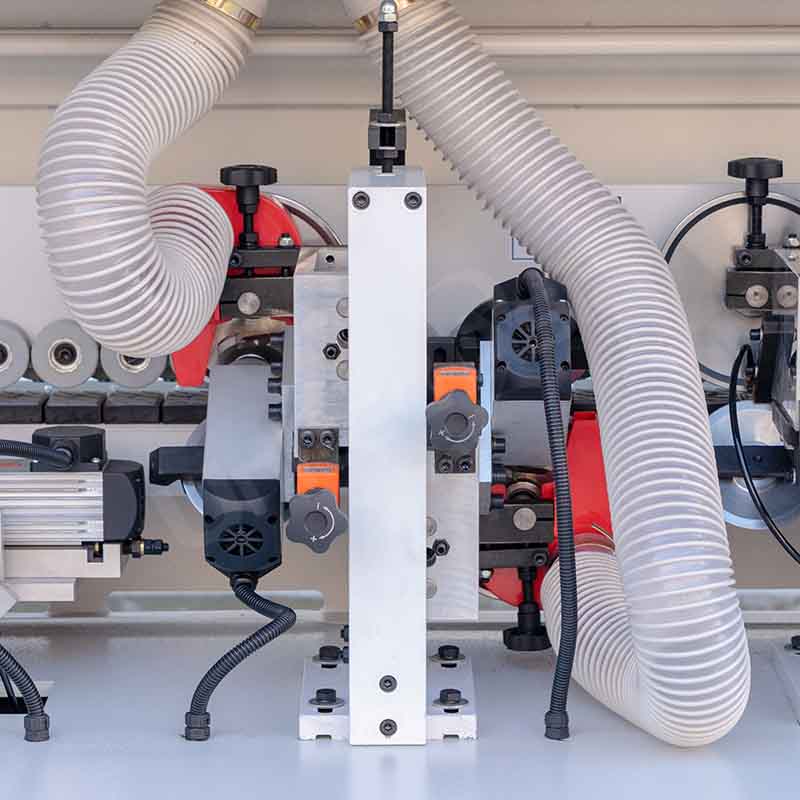

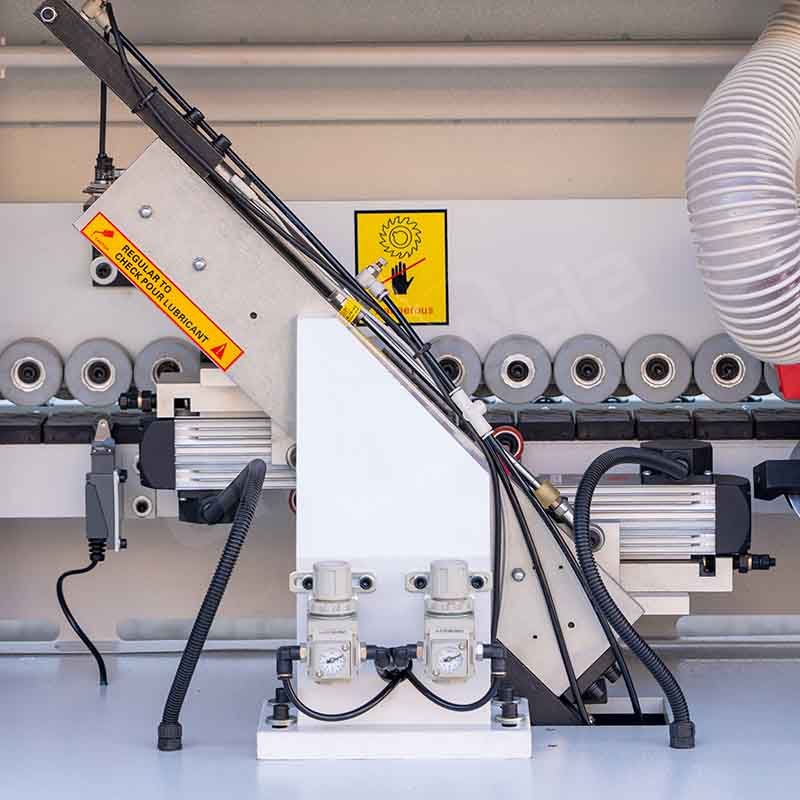

- End cutting device, through precise linear guide movement, automatic tracking of the mold and high-frequency high-speed motor fast cutting structure, to ensure the smoothness of the cut surface.
- Fine trimming device, finely trimming the excess edge banding on the upper and lower parts of the processed board to ensure the smoothness of the upper and lower parts of the trimmed board.
- Scraping device, used to eliminate the ripple marks caused by the cutting process of trimming non-linear motion, making the upper and lower parts of the board smoother and neater.

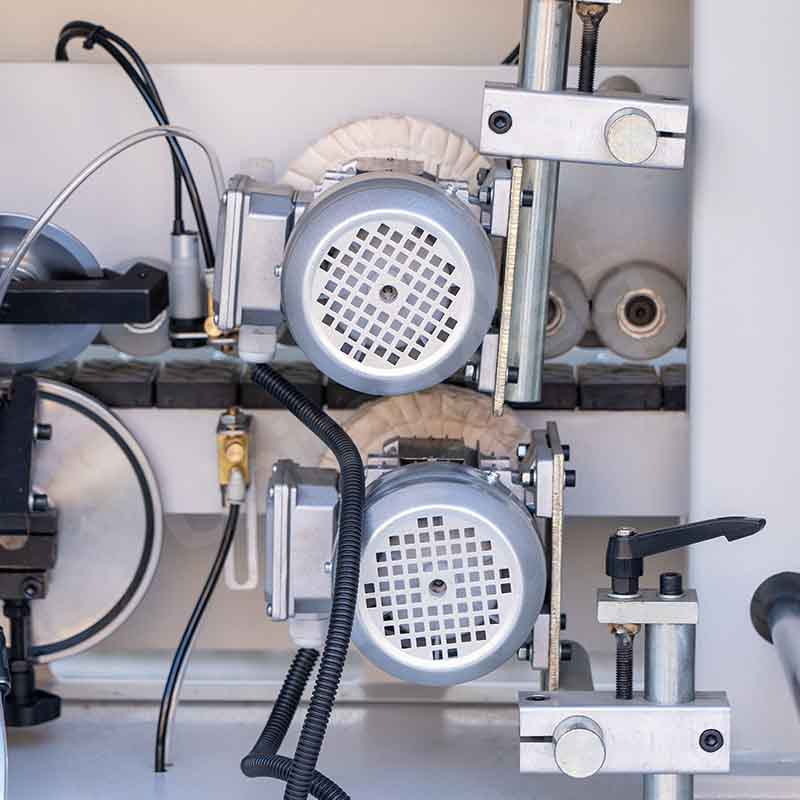

- Buffing device, clean the processed board with a cotton polishing wheel, and make the edge banding end face smoother through buffing.
Parameters
|
Model |
UA-6E |
|
Edge thickness |
0.4-3mm |
|
Panel thickness |
10-50mm |
|
Panel length |
140mm |
|
Panel width |
50mm |
|

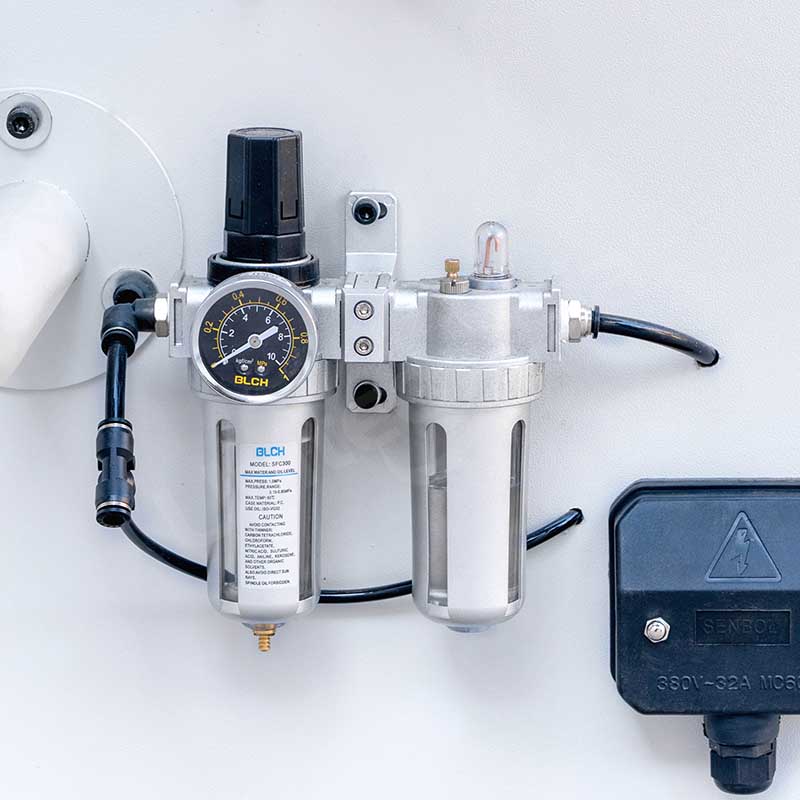

Working pressure |
0.7Mpa |
|
Total power |
11kW |
|
Body length x width |
3800x800mm |
|
Body highth |
1410mm |
|

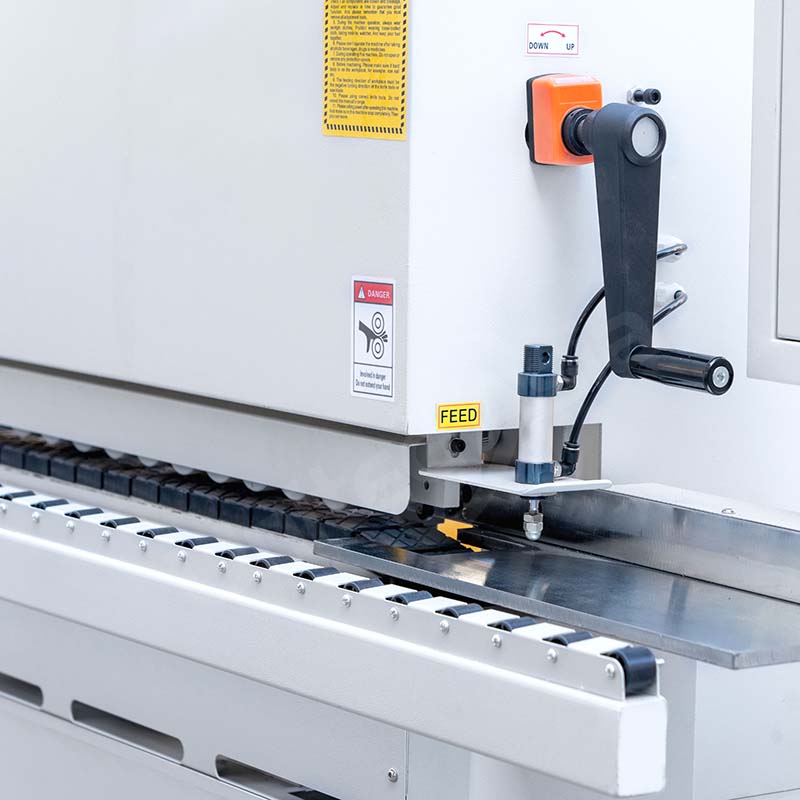

Feed speed |
13/18m/min |
Introduction
No more manually applying edge banding to your woodworking projects! Use our UA-6E auto edge bander to simplify and automate the edge banding process, saving you time and effort. Whether you are a professional woodworker looking to streamline your production process, or a hobbyist looking to improve the quality of your projects, this machine is the ultimate solution. With its comprehensive features and user-friendly design, this machine enables you to achieve professional-grade edge banding with ease and precision.
The pre-milling function of our UA-6E auto edge bander ensures that the edge of the workpiece is completely smooth, even before the edge banding process begins. This function sets the stage for a seamless and professional-looking edge banding application by eliminating any imperfections and irregularities. The gluing function of this machine applies a precise and even layer of adhesive to the edge of the workpiece. This ensures a strong adhesion and a lasting bond between the edge banding and the sheet, guaranteeing a long-lasting result. The End cutting function precisely trims excess material to create a clean, flush edge. The fine trimming function of the UA-6E auto edge bander allows for fine trimming of the edge banding. This level of precision is essential to achieve a perfectly seamless look. To further refine the edge, the scraping function removes any remaining imperfections and excess material for a smooth and even edge application. This step adds complexity and sophistication to the finished product. Finally, the buffing function provides the finishing touch for a polished and professional look. This step enhances the overall beauty of the edge, leaving a flawless, high-quality result.

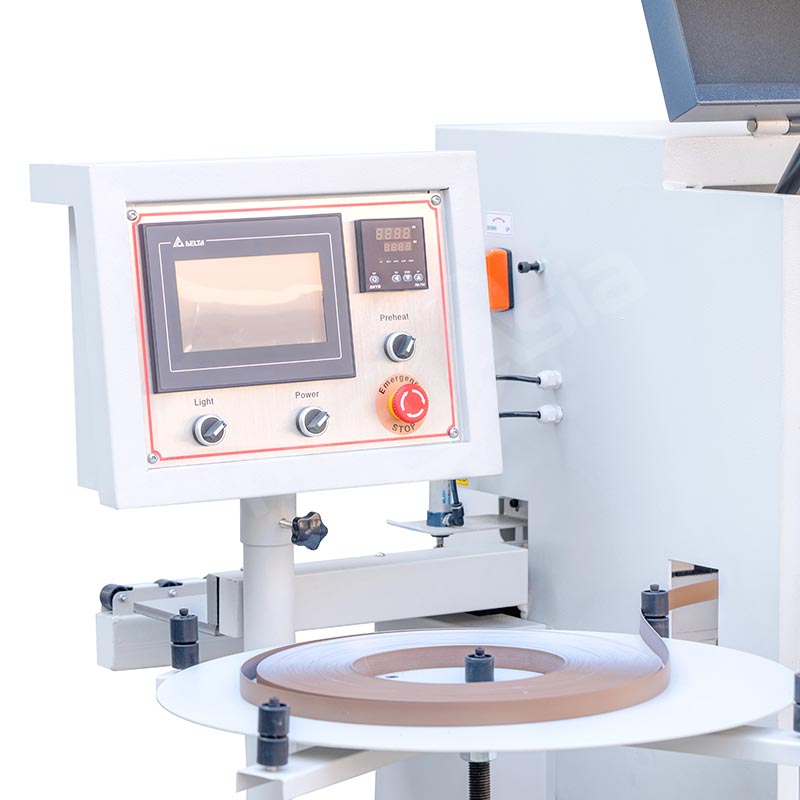

In addition to advanced features, our UA-6E auto edge bander is packed with user-friendly functions that make operation intuitive and efficient. From easy-to-use controls to durable construction, this machine is designed to meet the demands of a busy woodworking environment while providing consistent and reliable performance. Experience the difference in efficiency, quality, and precision as you take your woodworking projects to the next level. Welcome to order our UA-6E auto edge bander!
