UA-612M CNC Six Side Drilling Machine Exporter

Short Description:

The integration of CNC technology with woodworking machinery has opened up a world of possibilities, enabling complex designs and precise cuts that were previously only possible through manual labor. Our new generation UA-612M Six Side Drilling Machine provides woodworkers with unparalleled flexibility and accuracy. This machine can reduce costs and reduce labor expenses. One of the main advantages of UA-612M Six Side Drilling Machines is their ability to automate the woodworking process. Improve work efficiency and maximize machine working time. By automating the woodworking process, the UA-612M Six Side Drilling Machine can significantly reduce production time and labor costs. Jobs that previously took days to complete can now be completed in a fraction of the time with CNC technology. In addition to saving time and money, the UA-612M Six Side Drilling Machine helps reduce waste. The precision of CNC technology ensures efficient use of wood, minimizing material waste and maximizing yield per piece of wood. Not only is this good for the bottom line, it’s also consistent with sustainable woodworking practices. The integration of CNC technology into woodworking also opens up new creative possibilities for woodworking. The production is flexible and basically covers the functions of the drilling section. There is no need to adjust due to new processes. This versatility allows woodworkers to take on more projects, and the UA-612M Six Side Drilling Machine handles the job with ease.


Product Detail

Product Tags

Parameters

Model

UA-612M

Processing size

Plate width

35-1200mm

(35-50mm L≤1000mm)

Plate length

70-2800mm

Plate thickness

9-50mm

Top drill box

Vertical drill

12

Horizontal drill

8

Motor speed

3400rpm(r/min)

Bottom drill box

Vertical drill

3x3

Motor speed

3400rpm(r/min)

Milling spindle

Power

2x3.5kW

Type

Er25

Handle diameter

1/2 shank diameter

Speed

18000rpm(r/min)

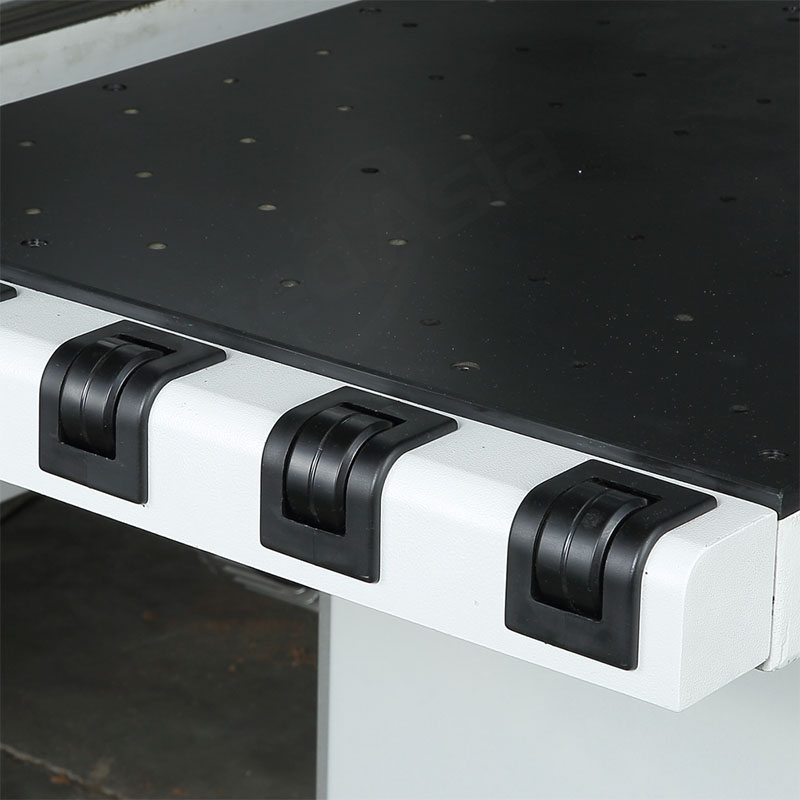

Feeding table

Type

Air flotation table

Height

950mm

Discharge table

Type

Drum

Height

950mm

Working Parameters

Total power

19.7kW

Working voltage

380/50V/Hz

Working air pressure

0.7-0.8Mpa

Working time per week

7x24 Day/H

Vacuum outlet

Diameter

1 x 150mm

1 x 100mm

Flow rate

7300m³/h

Machine

Dimensions (LxWxH)

5050X2790X2200mm

Weight

3500kg

Introduction

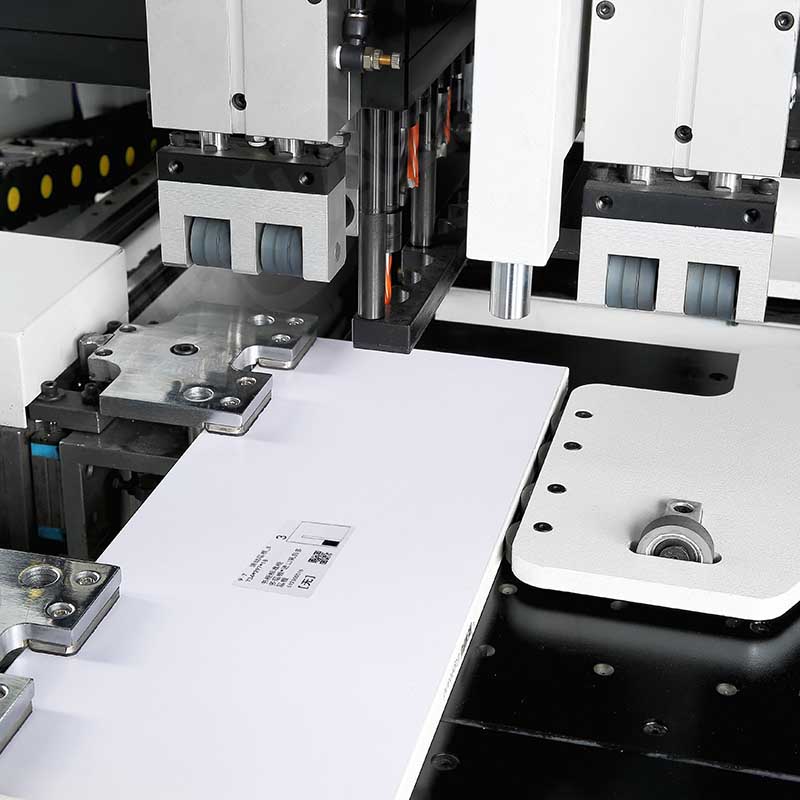

- The first-class six-sided drilling technology can easily realize the drilling of six sides of the plate, the slotting or milling of the upper and lower sides, and the opening of hinge holes. It is a drilling equipment that focuses on high-precision drilling and efficient output. It is a processing tool for custom furniture factories and cabinet production.

- Complete the six-sided drilling and front and back slotting of the plate at one time.

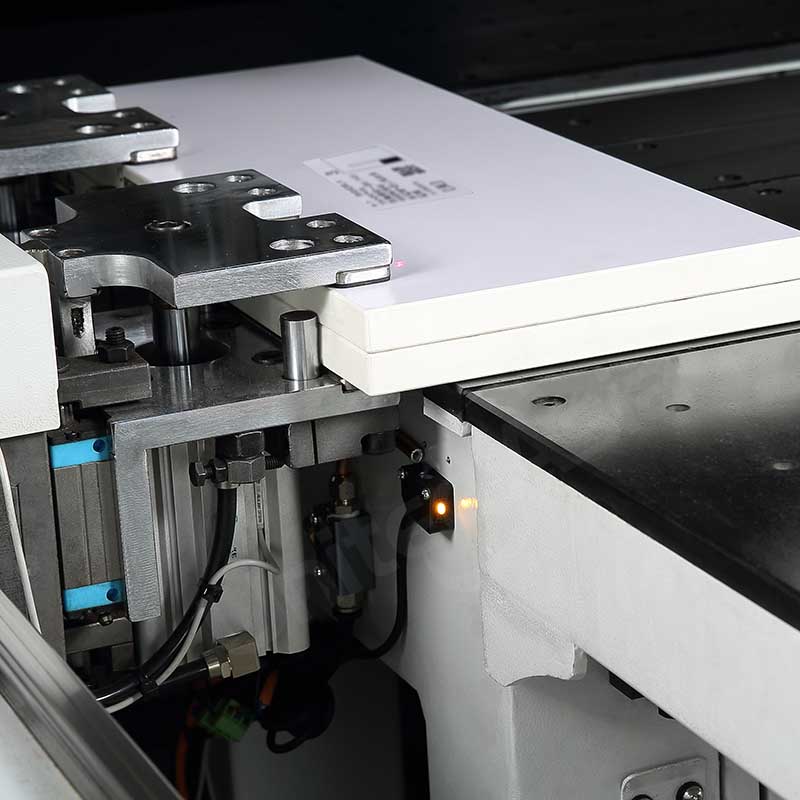

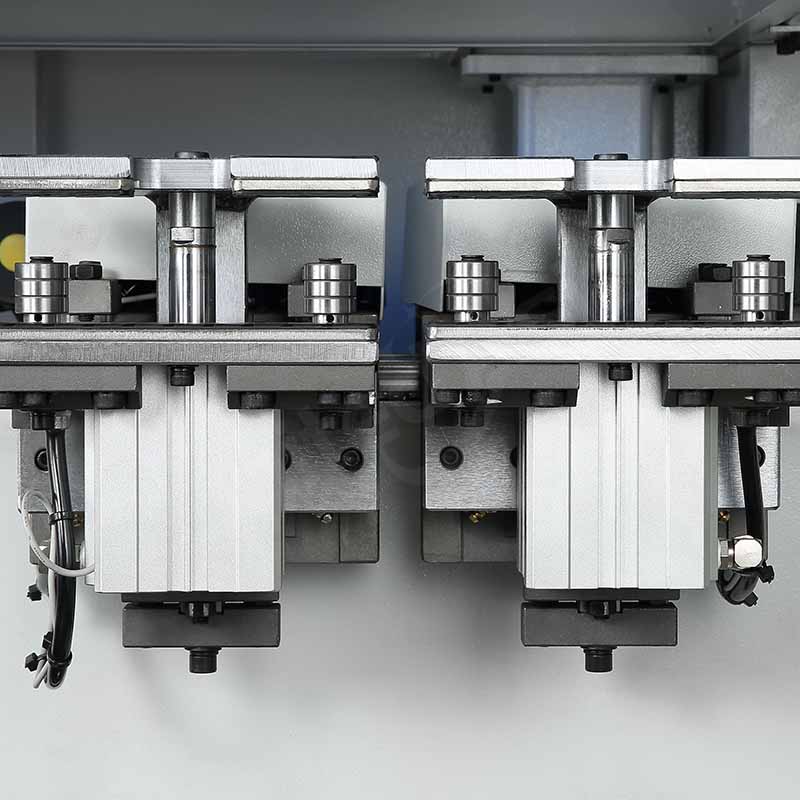

- Equipped with two CNC-controlled clamps, it can clamp and accurately position the workpiece permanently.

- It can not only operate as a single machine, but also can be connected to multiple machines or even combined with other drilling CNCs to achieve efficient automation of the drilling process.

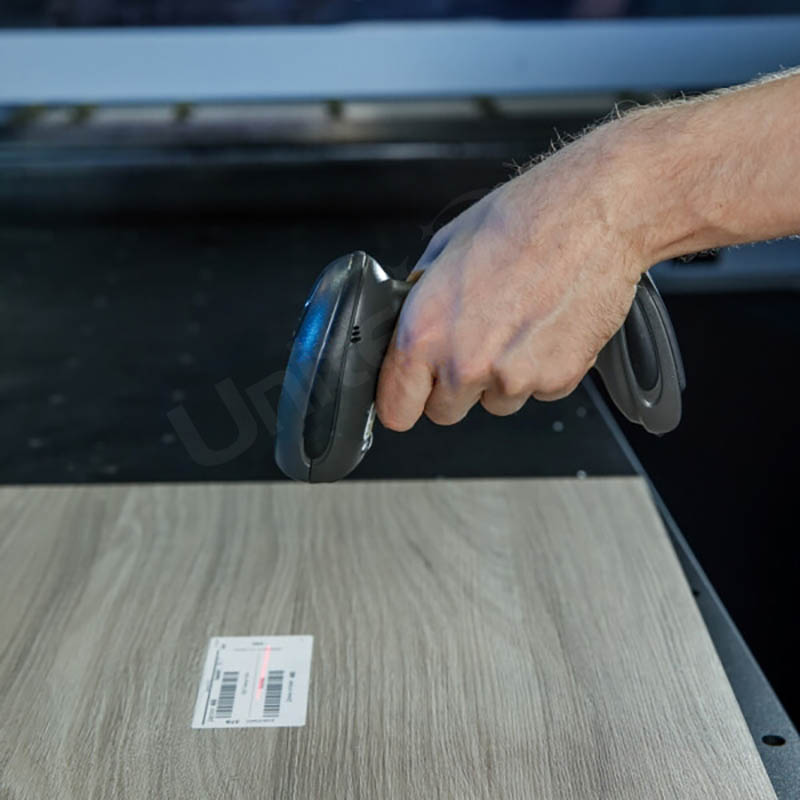

- Scan code processing - scan the code to read the processing program, no programming and debugging are required.

- Minimum processing size - can be as small as 70mm (length) X 35mm (width).

- Each hole can be drilled with extremely high repeatability, and the same is true for milling and slotting. Despite the extremely fast movement speed, the workpiece surface can still be perfectly protected.

- Automatic thickness inspection and length measurement to achieve reliable processes.
