UA-612KSZ CNC Six Side Drilling Machine Exporters
Parameters
Model |
UA-612KSZ |
Workpiece length |
70-2800mm |
Workpiece width |
50-1200mm 35-50mm(L≤1000mm) |
Workpiece thickness |
9-60mm |
Number of tools |
Upper vertical drill: 24V Bottom vertical drill: 9V Horizontal drill: 16V Tool storage capacity: 4V |
Spindle power |
3.5kw*1; 6kw*1 |
Overall dimension |
5800*2800*2200mm |
Introduction
THE MINIMUM INTERVAL BETWEEN SIMULTANEOUS DRILLING OF TWO DRILLING PACKAGES IS 120MM

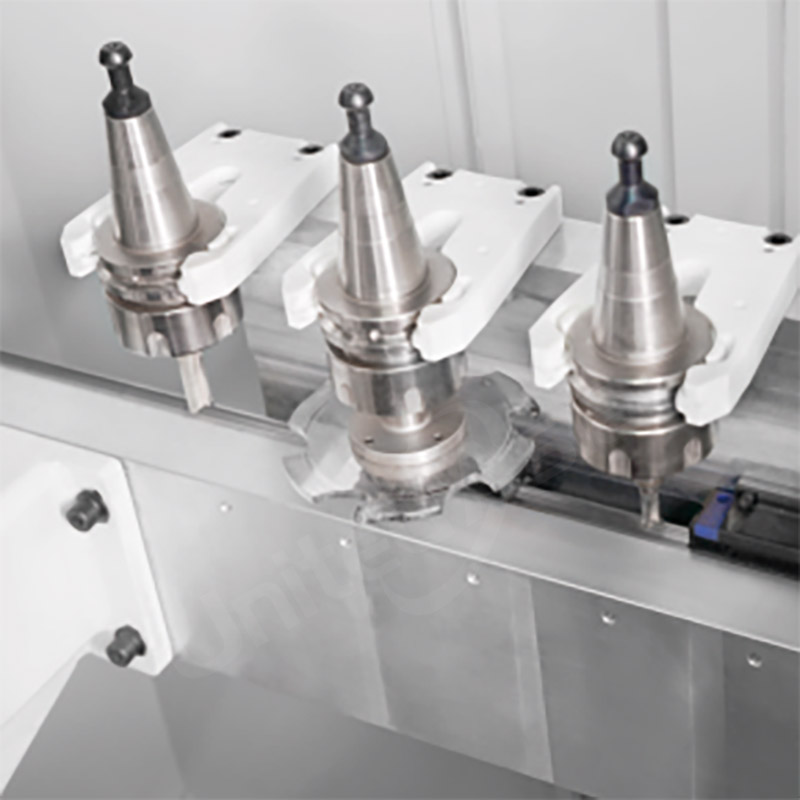

AUTOMATIC TOOL CHANGE WITH SERVO FOUR-TOOL MAGAZINE
INTELLIGENT UPGRADE, JUMP DRILLING, EFFICIENCY INCREASED BY 30 PERCENT
- Beam through structure, six-sided drilling operation completed at one time.

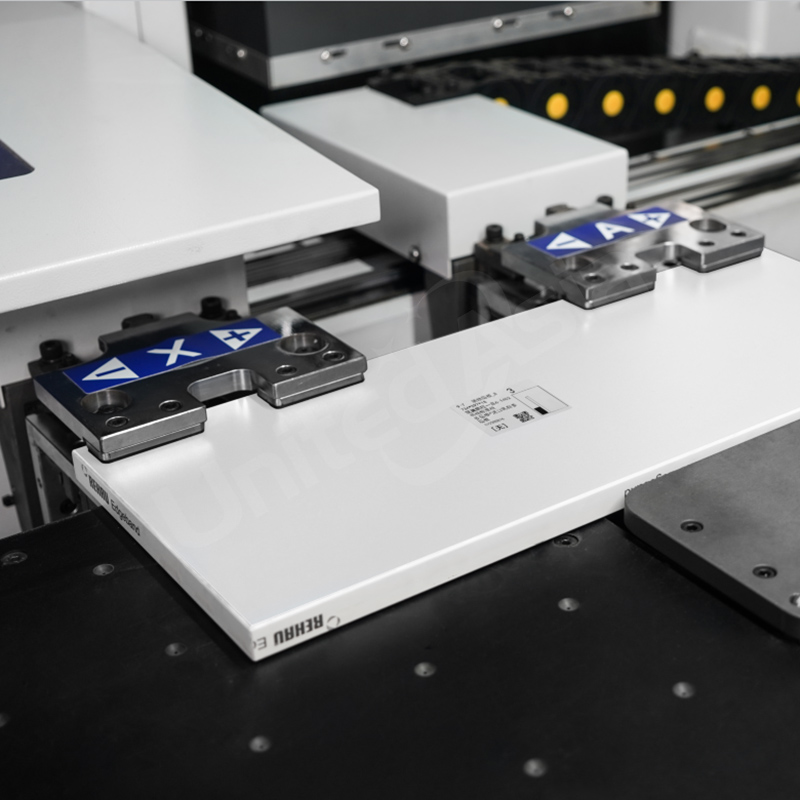

- Double clamps, automatically adjust the clamping position according to the length of the plate, vertical + horizontal drilling with spindle, can achieve diversified processing.

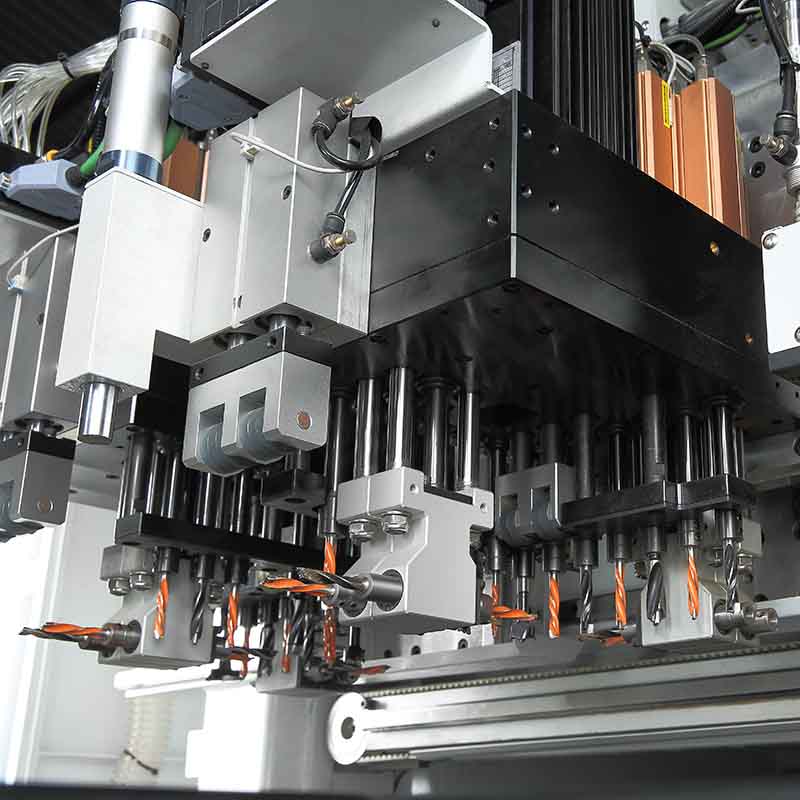

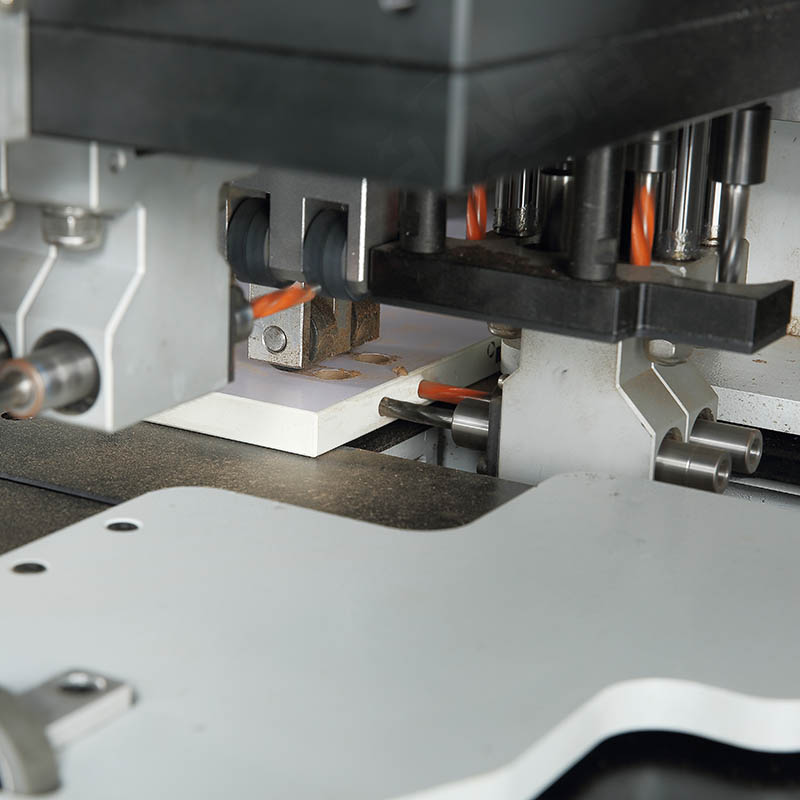

- Double drill kit can drill side holes and vertical holes at the same time, greatly improving efficiency.
- The minimum processable plate width of the punching connection is 35mm, a unique advantage.
- Automatic tool change spindle + servo four-tool magazine.
