UA-612K Woodworking CNC Six Side Drilling Machine
Parameters
Model |
UA-612K |
|
Each axis stroke & Maximum positioning speed |
X axis |
5000mm & 100m/min |
Y axis |
1200mm & 80m/min |
|
Z axis |
90mm & 30m/min |
|
U axis |
1200mm & 60m/min |
|
V axis |
1200mm & 80m/min |
|
W axis |
60mm & 30m/min |
|
A axis |
5000mm & 100m/min |
|
Y2 axis |
1500mm & 80m/min |
|
Z2 axis |
90mm & 30m/min |
|
Processing size range |
Maximum width of the board (vertical) |
1200mm |
Minimum width of the board (vertical) |
35mm |
|
Maximum length of the board (vertical) |
5000mm |
|
Minimum length of the board (vertical) |
70mm |
|
Maximum thickness of the board (vertical) |
50mm |
|
Vacuum flow |
7300m³/h |
|

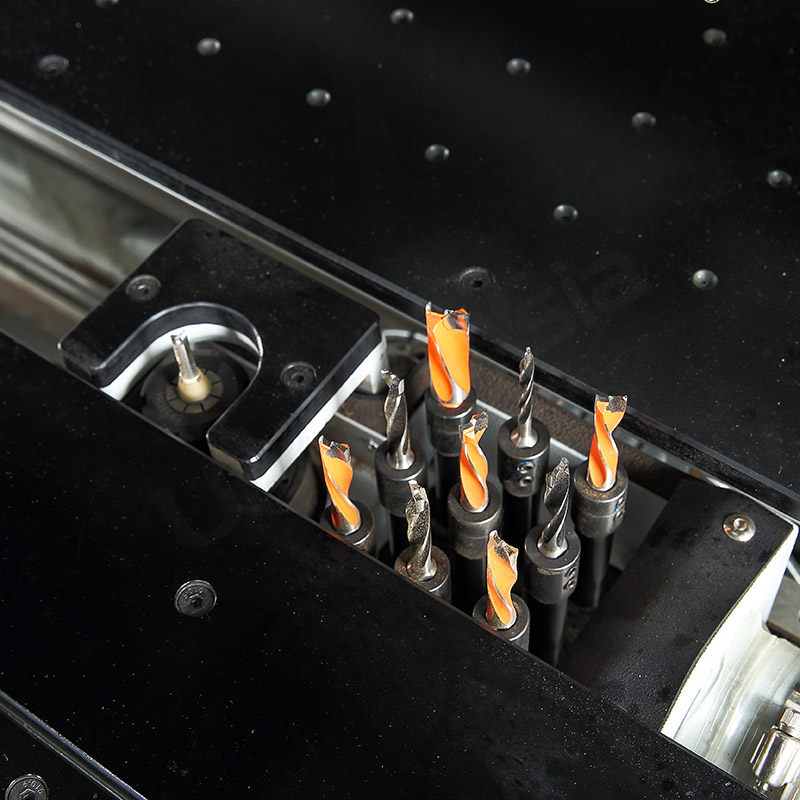

Drilling assembly |
Vertical drill |
Down drill: 9 Up drill: 12 |
Horizontal drill |
Horizontal drill: 8 pcs |
|
Drill motor speed |
3400rmp(r/min) |
|
Spindle power |
3.5kWx2 |
|
Routing and milling spindle |
Spindle type |
Er25 |
Tool holder diameter |
1/2 shank diameter |
|
Spindle speed |
18000rpm(r/min) |
|
Other |
Workbench height |
950mm |
Total power |
23.6kW |
|
Operating Voltage |
380V/50Hz |
|
Working air pressure |
0.7-0.8Mpa |
|
Dimensions |
5200x2840x2200mm |
|
Total weight |
About 3800kg |
Introduction
COMPLETE THE SIX-SIDED DRILLING AND FRONT AND BACK GROOVING OF THE PANEL IN ONE GO

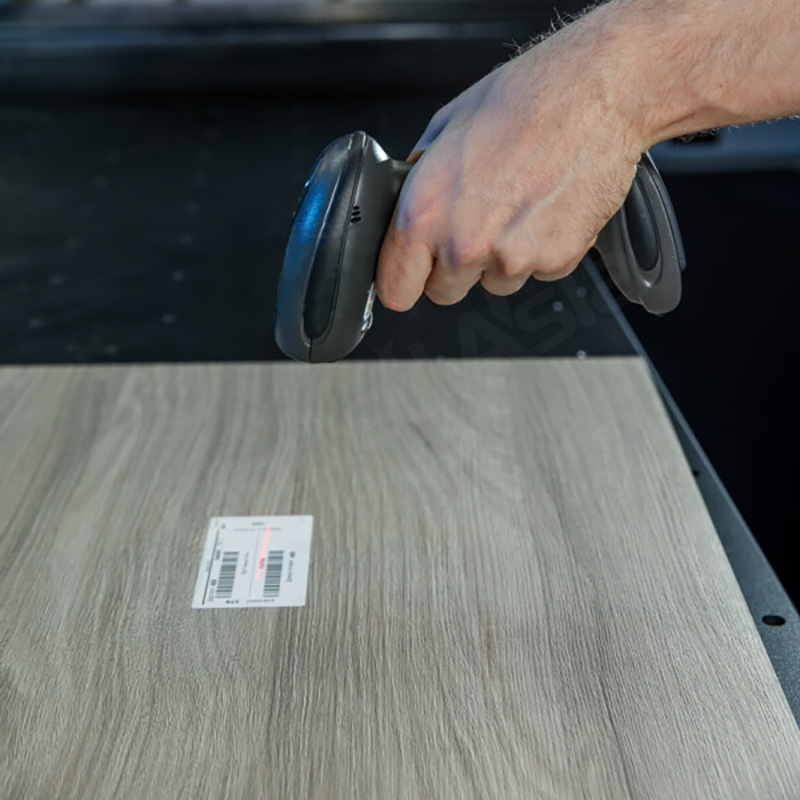

The UA-612K CNC Six Side Drilling Machine prides itself on speed and precision when machining. The machine adopts a cross-beam pass-through structure. It can automatically read the processing information by scanning the QR code of the panel and complete the positioning, feeding and other processes. It can easily complete six-sided drilling at one time. Equipped with double clamp feeding, the clamping position can be automatically adjusted according to the length of the plate. By matching the optional drilling package and spindle, it can realize diversified processing such as six-sided drilling, upper and lower grooving, and special-shaped milling.

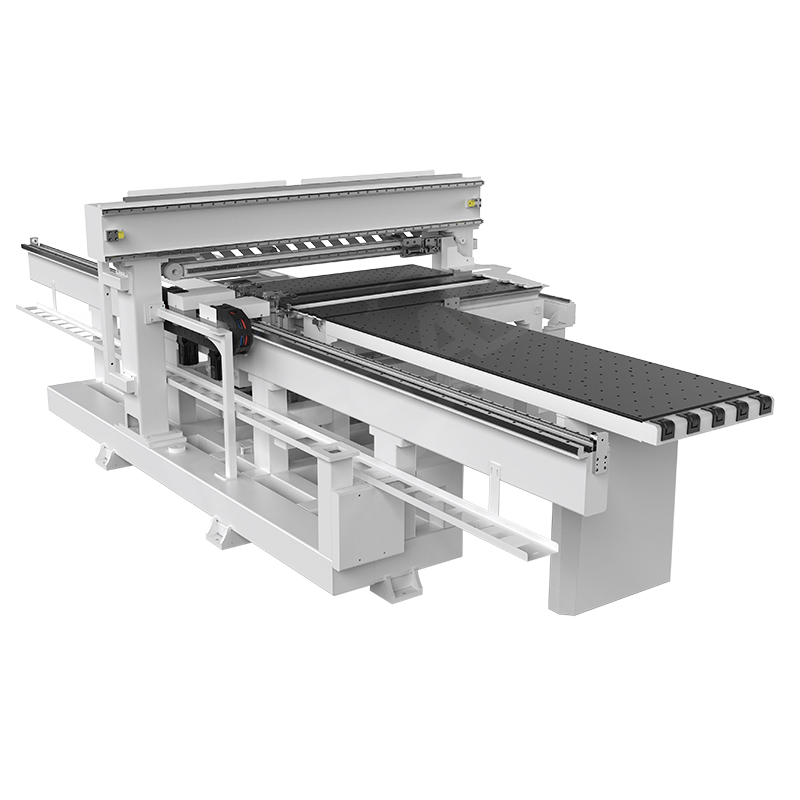

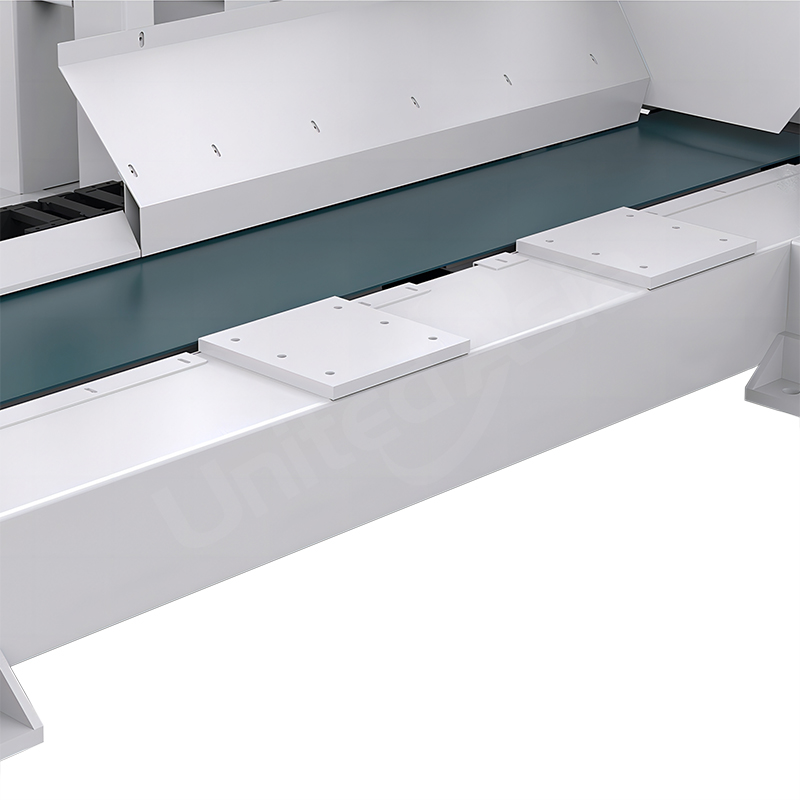

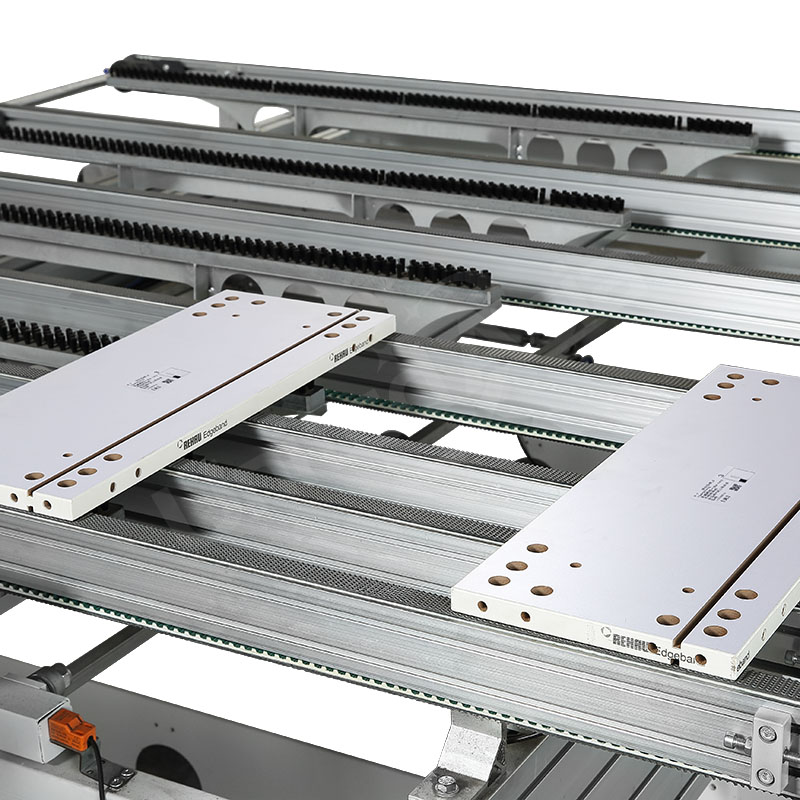

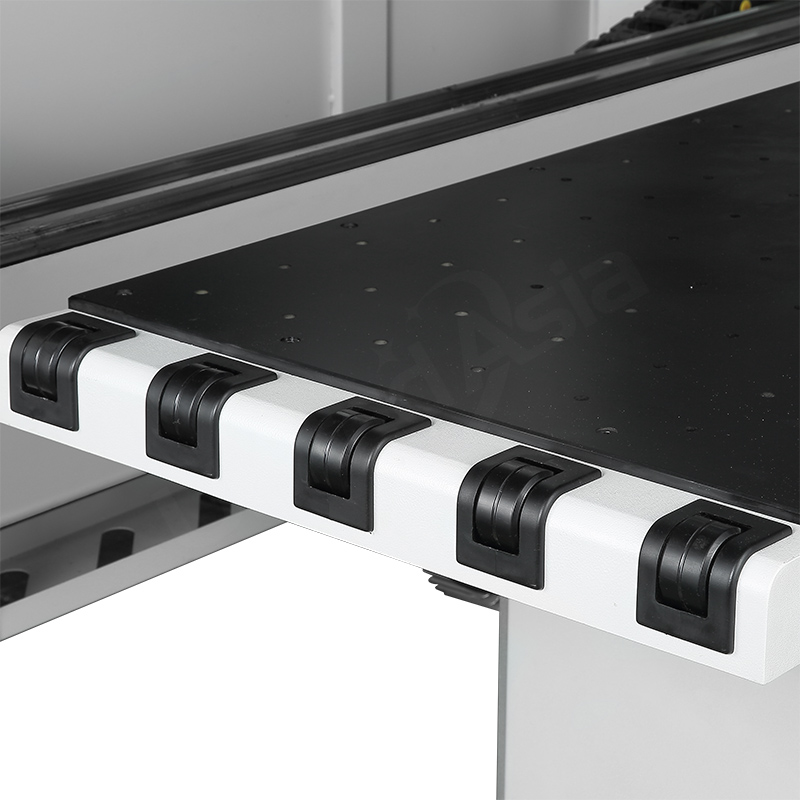

- Six-sided drilling processing center, beam through-type structure, six-sided drilling operation is completed at one time.

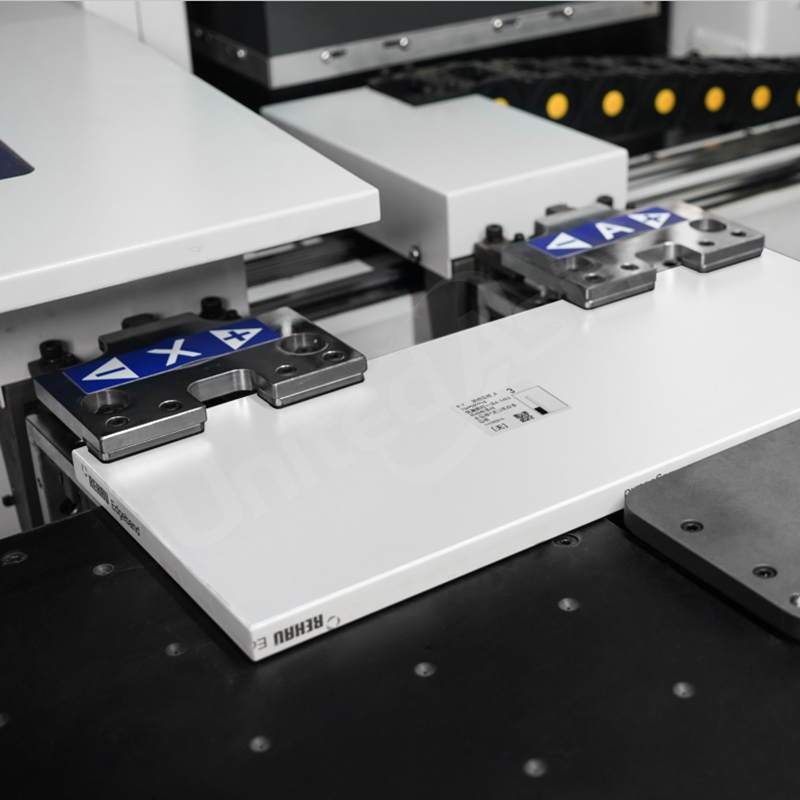

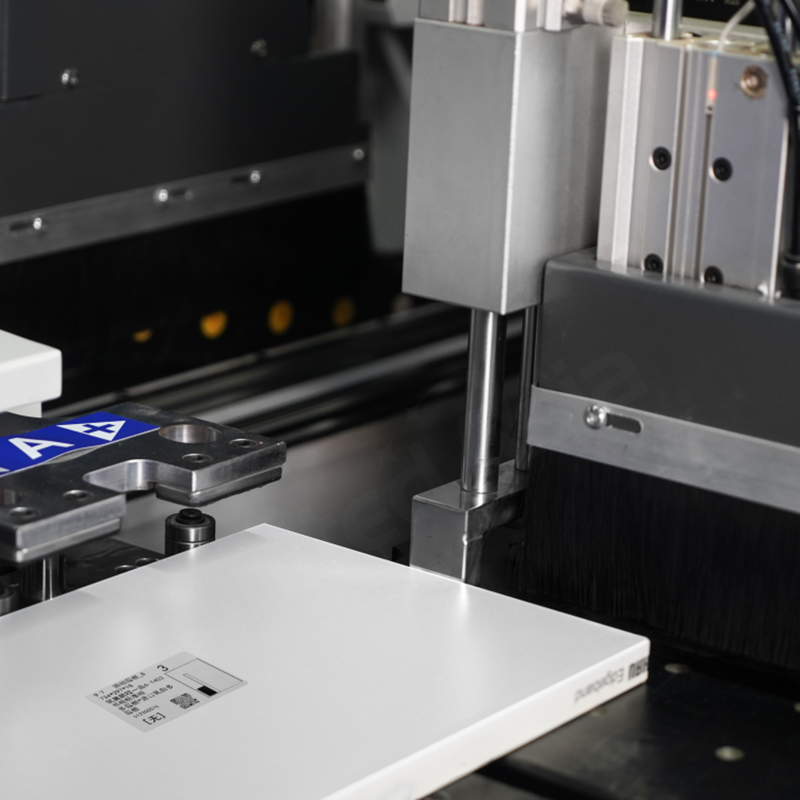

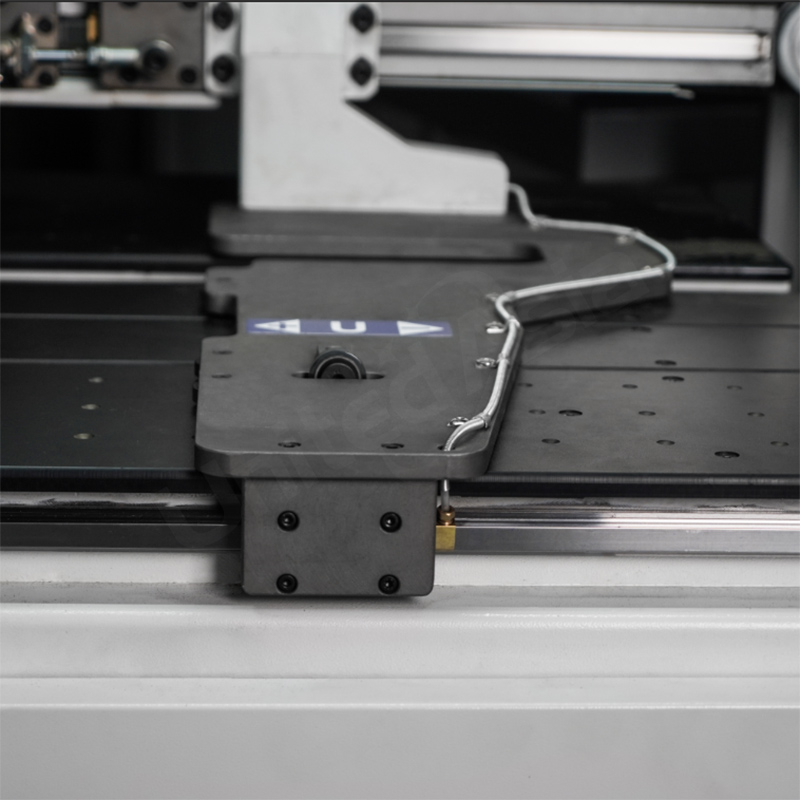

- Double clamps, automatically adjust the clamping position according to the length of the plate, vertical + horizontal drilling with spindle, can achieve diversified processing.
- The minimum processable plate width of the punching connection is 35mm, which is a unique advantage.
Capacity report
- For pure six-sided punching, the number of plates is 700-800 pieces per day for 8 hours (punching and grooving).
- For mixed five-sided and six-sided punching, the number of plates is 800-1000 pieces per day for 8 hours (punching and grooving).
- For pure five-sided punching, the number of plates is 1000-1100 pieces per day for 8 hours (punching and grooving).
- For pure five-sided punching, the number of plates is 1100-1200 pieces per day for 8 hours (punching only).
