UA-5E Woodworking Auto Edge Bander Machine Supplier
Details
Gluing
End cutting
Fine trimming
Scraping
Buffing

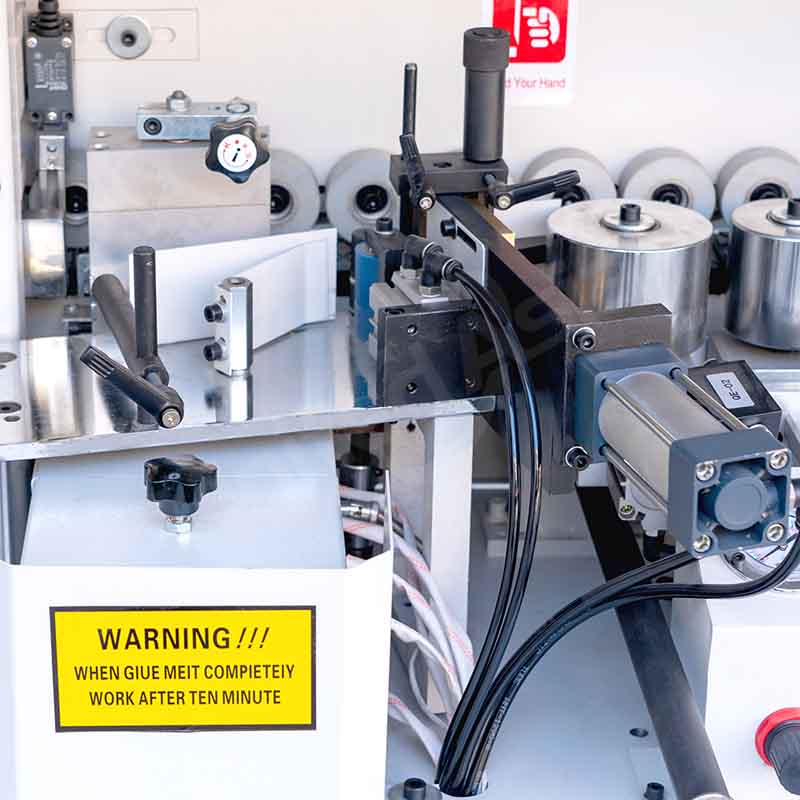

- Gluing device, evenly apply glue to the side of the board. At the same time, pressing can make the edge banding and the board bonded together, and the bonding force is stronger.

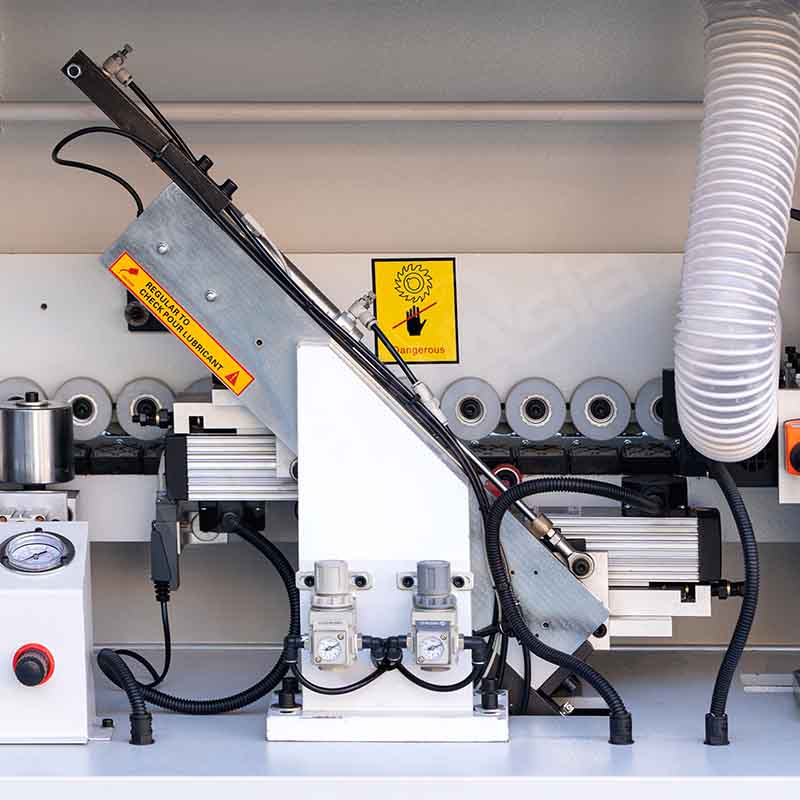

- End cutting device, through precision linear guide movement, adopts automatic template tracking and high-frequency high-speed motor rapid cutting structure to ensure a smooth and smooth cutting surface.

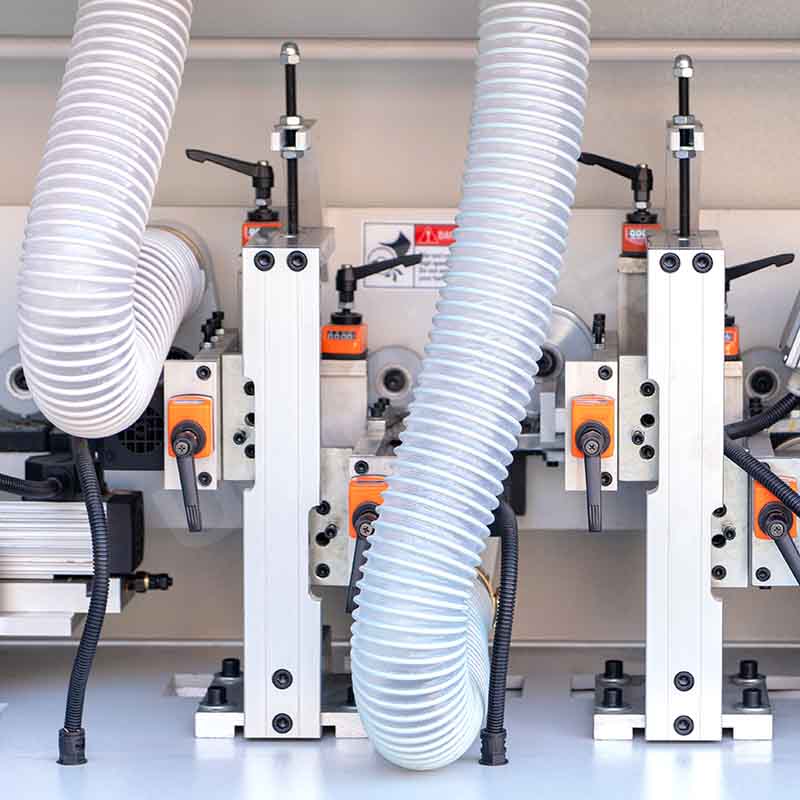

- Fine trimming device can finely trim the excess edge banding margin on the upper and lower sides of the processed plate to ensure that the upper and lower trimmed parts of the plate are flat and smooth.
- Scraping device is used to eliminate ripple marks caused by the non-linear cutting process of trimming, making the upper and lower parts of the board smoother and neater.

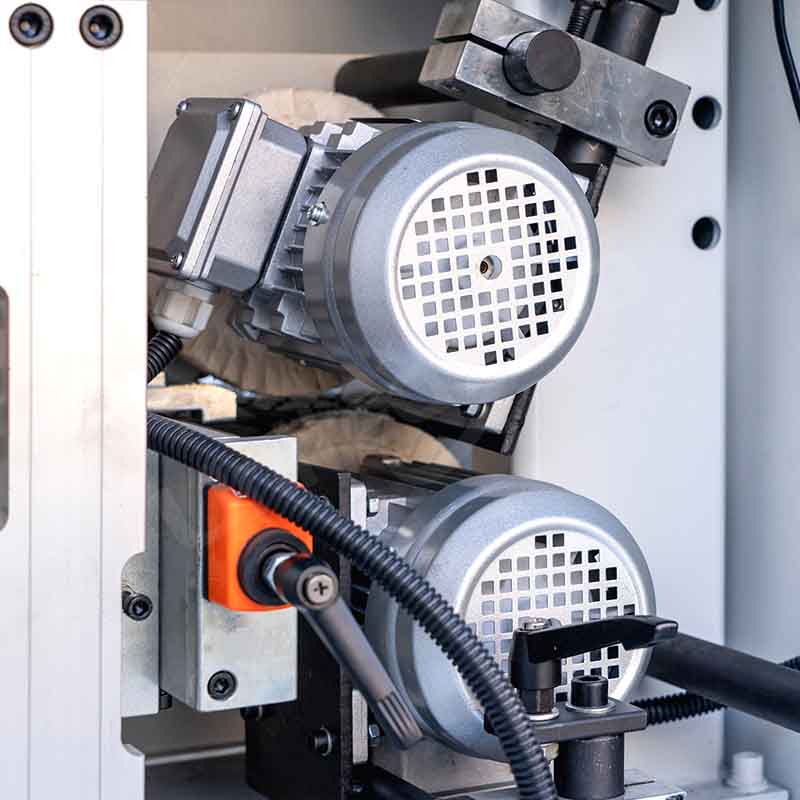

- Buffing device, which uses a cotton polishing wheel to clean the processed plate and make the edge-sealed end surface smoother through buffing.
Parameters
|
Model |
UA-5E |
|
Thickness of edge banding belt |
0.4-3mm |
|
Height of edge banding belt |
12-55mm |
|
Thickness of work piece |
10-50mm |
|
Min. width of work piece |
80mm |
|
Min. length of work piece |
160mm |
|
Feeding speed |
0-13m/min |
|
Air pressure |
0.6-0.8Mpa |
|
Total power |
7.13kW |
|
Machine size |
2750x800x1260mm |
|
Weight |
1000kg |
Introduction
Do you want professional results without the hassle and frustration of conventional methods? Our UA-5E auto edge bander is your best option. Thoughtfully designed and innovative, this auto edge bander simplifies the edgebanding process so you can complete your project in less time than with traditional methods. Whether you're working on cabinets, furniture, or other woodworking projects, this machine is versatile enough to handle a variety of edgebanding applications.
Our UA-5E auto edge bander has a high-quality gluing system that ensures a strong and lasting bond between the edge banding and the workpiece. Say goodbye to messy glue and uneven bonding, this machine can handle it all with precision and efficiency. Say goodbye to uneven edges and time-consuming manual trimming, use our machine's end cutting function to achieve clean, precise cuts for a professional finish. The fine trimming function of the UA-5E auto edge bander allows you to achieve smooth, seamless edges, giving your woodworking projects a professional look. Excess edge banding material can be easily removed using the machine's Scraping function. The machine can handle it quickly and efficiently, leaving you with a perfect end result. Use the buffing feature of our machines to put the finishing touch on your woodworking projects. Achieve a smooth, polished surface that enhances the overall appearance of your work piece.
When it comes to edge banding, accuracy and efficiency are key. Our UA-5E auto edge bander combines advanced technology with user-friendly features to deliver superior results every time. Whether you want to increase the efficiency of your woodworking project or improve the quality of your finished product, this machine is the ultimate solution. Say goodbye to the worries of traditional edge sealing methods and welcome a new era of precision, efficiency and professionalism. Place your order for the UA-5E auto edge bander now and experience the difference our edge banding machine can make in your workshop!
