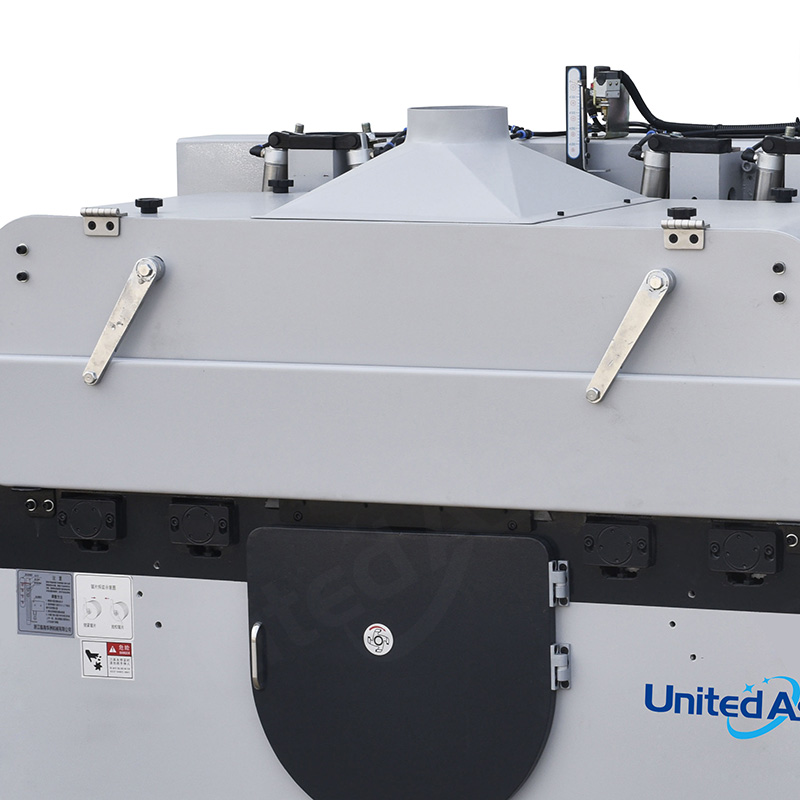

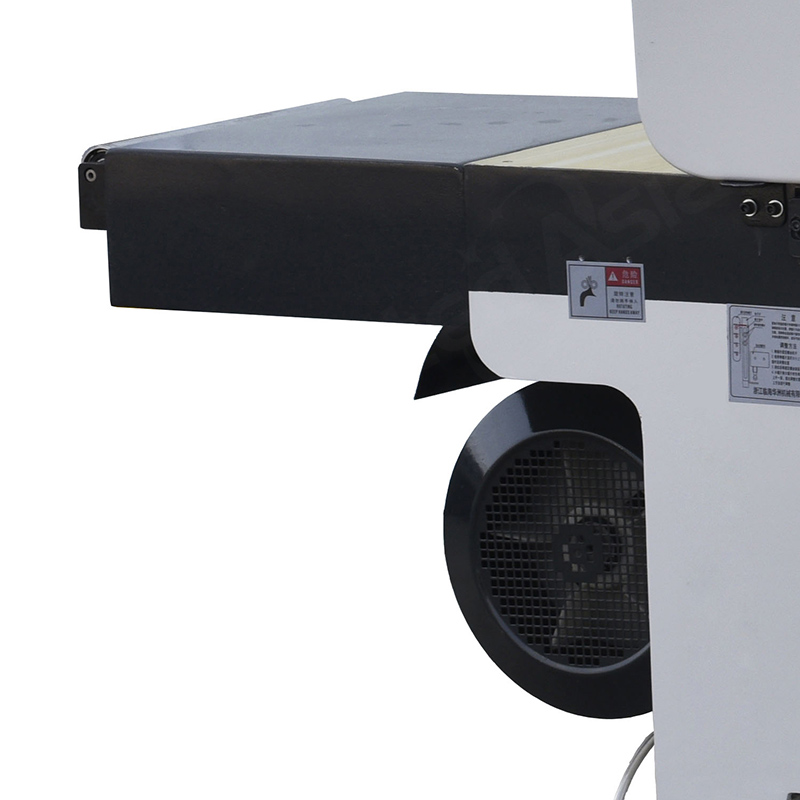

MJ400E High Quality Multi Blade Rip Saw Machine

Short Description:

In the modern wood processing industry, efficient and precise cutting has become the core pursuit of enterprises. Therefore, we recommend you a high-quality wood multi rip saw machine. MJ400E Multi Blade Rip Saw Machine has become an essential equipment for modern wood processing with its efficient, intelligent and flexible performance. It has excellent cutting capabilities and handles many types of wood with ease, ensuring product quality and consistency. The machine adopts a high-power drive system and can complete the cutting task of large quantities of wood in a short time. The design of multiple pieces being cut simultaneously greatly improves production efficiency, enabling your production line to operate quickly to meet the growing market demand. The wood multi rip saw machine has selected high-quality materials to ensure its durability and long life. And, efficient work performance allows you to complete woodworking projects faster and unleash your creativity. When choosing a wood multi rip saw machine, in addition to getting high-efficiency and high-quality production tools, you can also enjoy our professional guidance and considerate after-sales support. If you need to know more about MJ400E Multi Blade Rip Saw Machine, please contact our professional team, they will be more than happy to answer and help you. Let us work together and use the power of wood multi rip saw machine to achieve your production goals and create more high-quality wood products!


Product Detail

Product Tags

Introduction

- Multiple feeding wheels make the feeding effect more stable.

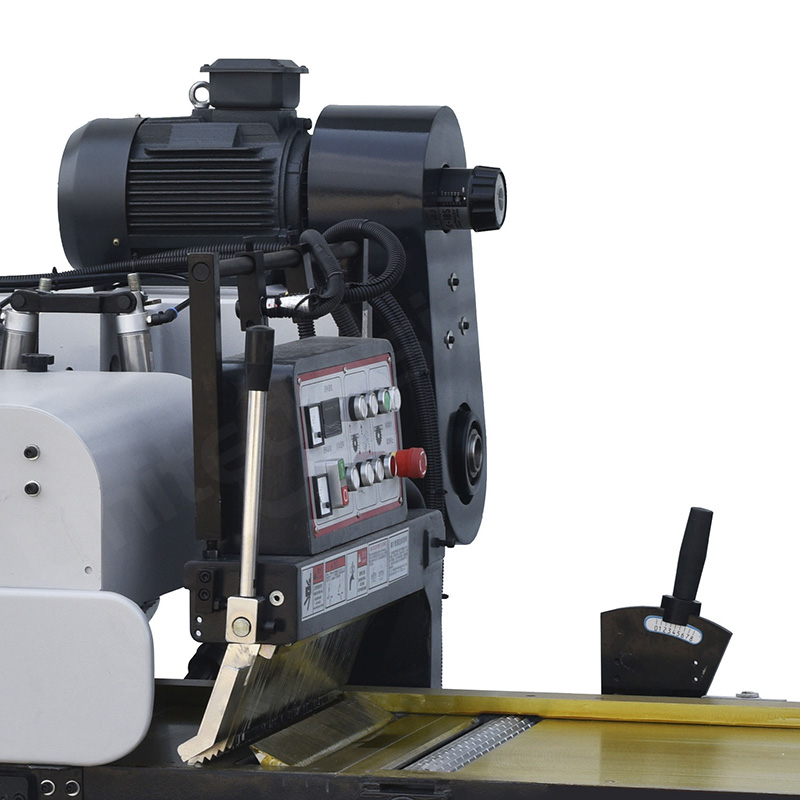

- Independent control panel, easy to operate.

- Powerful brand motor with long service life.

Details

Parameters

Model

MJ400E

Saw blade specification(exicrcle x bore x keyway)

(Φ250~Φ355/405)xΦ70x20mm

Rotational speed of main shaft

2970r/min

Max sawing width(open fifiles)

400mm

Max saw height

100mm(355mm saw blade)

115mm(405mm saw blade)

Min sawing length

300mm

Feeding speed

9-35m/min

Total power of machine tool

42.1kw

Power of main motor

37kw

Power of feeding motor

4kw

Elevating power of feeding mount

0.55kw

Power of saw mount elevating motor

0.55kw

Machine exterior dimensions(LxWxH)

3000x1010x1400mm

Machine tool at an about net weight of

2500kg

Packaging & Loading
