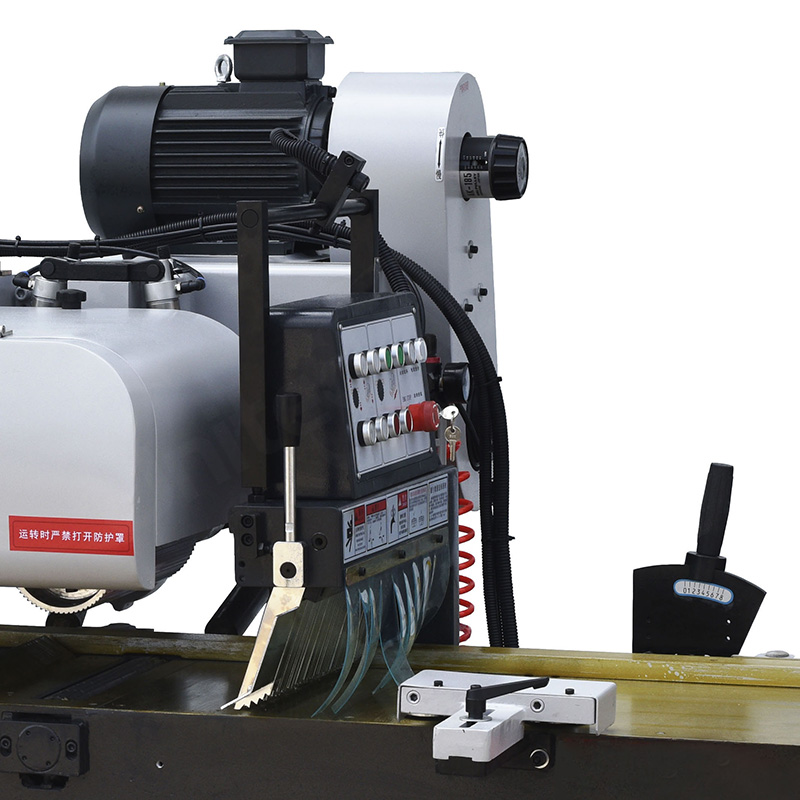

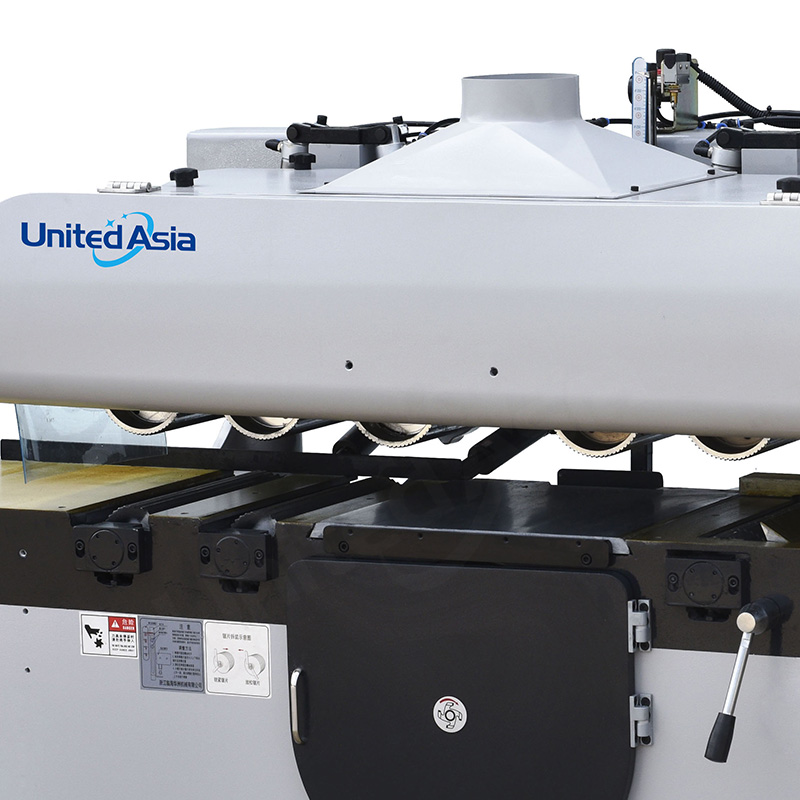

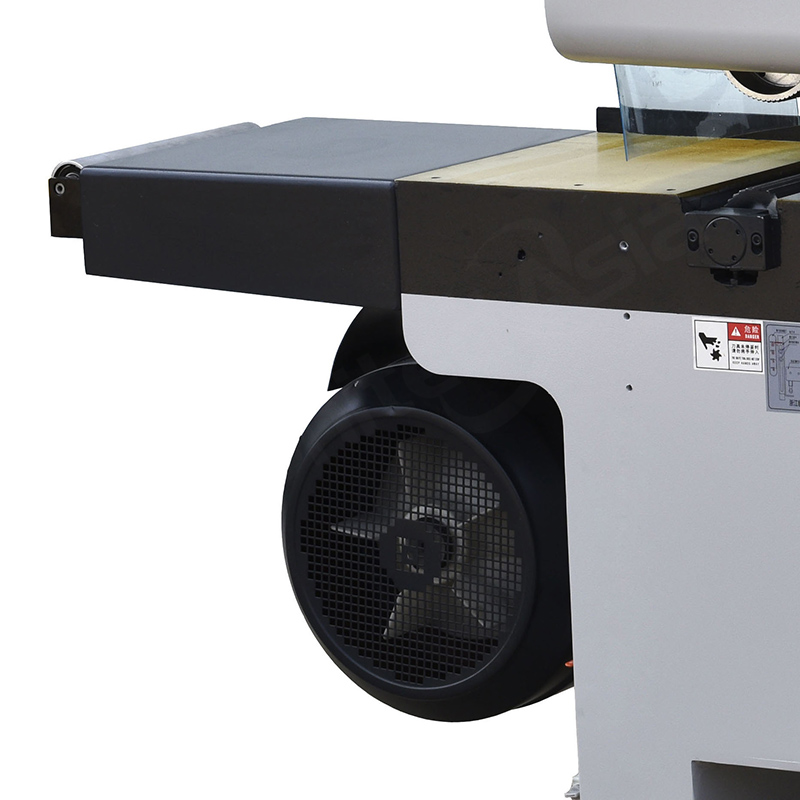

MJ300E Wood Multi Rip Saw Blade Machine
Introduction
- Multiple feeding wheels make the feeding effect more stable.
- Independent control panel, easy to operate.
- Powerful brand motor with long service life.
Parameters
Model |
MJ300E |
Saw blade specification(exicrcle x bore x keyway) |
(Φ250~Φ355/405)xΦ70x20mm |
Rotational speed of main shaft |
3200r/min |
Max sawing width(open fifiles) |
300mm |
Max saw height |
100mm(355mm saw blade) 115mm(405mm saw blade) |
Min sawing length |
300mm |
Feeding speed |
9-35m/min |
Total power of machine tool |
42.1kw |
Power of main motor |
37kw |
Power of feeding motor |
4kw |
Elevating power of feeding mount |
0.55kw |
Power of saw mount elevating motor |
0.55kw |
Machine exterior dimensions(LxWxH) |
3000x1200x1500mm |
Machine tool at an about net weight of |
2000kg |
