MJ162A Woodworking Single Blade Rip Saw Machine

Short Description:

The MJ162A Woodworking Single Blade Rip Saw Machine is a sharp tool that can greatly improve the efficiency of wood processing. It can not only improve production efficiency and wood processing quality, but also has the characteristics of simple operation, safety and reliability. If you are a practitioner in the wood processing industry, you may wish to consider introducing a single rip saw for wood cutting machinery to make your production more efficient and of higher quality. As a supplier of single blade saws for wood cutting machinery with rich industry experience, we provide you with high-quality products and services. If you are interested in our products or have any questions, please feel free to contact us. We look forward to working with you to create a better future!

Send email to us

Product Detail

Product Tags

Details

MJ162A-Woodworking-Single-Blade-Rip-Saw-Machine-2

MJ162A-Woodworking-Single-Blade-Rip-Saw-Machine-3

MJ162A-Woodworking-Single-Blade-Rip-Saw-Machine-5

MJ162A-Woodworking-Single-Blade-Rip-Saw-Machine-4

MJ162A-Woodworking-Single-Blade-Rip-Saw-Machine-7

MJ162A-Woodworking-Single-Blade-Rip-Saw-Machine-6

Parameters

Model	MJ162A
Saw blade diameter	255-355mm
Max. processing thickness	80mm
Short processing length	250mm
Spindle width	Left 300/Right 460mm
Spindle speed	2900r.p.m
Spindle diameter	50.8mm
Feeding speed	3-26m/min
Main motor power	7.5kw
Feed motor power	0.75kw
Total power	8.25kw
Blade thickness	3.2-5.0mm
Working desk size	850x1400mm
Dimensions	1600x1330x1490mm
Machine weight	855kg

Introduction

MJ162A-Woodworking-Single-Blade-Rip-Saw-Machine-Structure-1

- Unique double-ended bearing support, multi-V-precision manufacturing of linear tracks, high hardness, wear-resistant conveyor chain pieces, so delivery precision, stable.

- Spindle and motor with flexible coupling connection, easy maintenance, no loss of power, low noise, high precision.

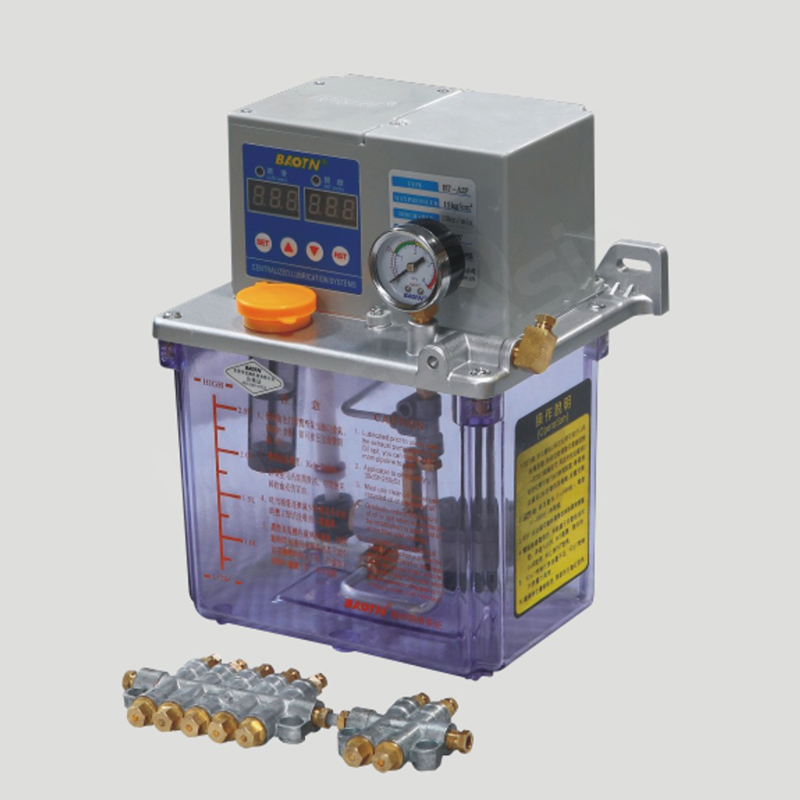

- Unique volumetric lubrication system to ensure excellent lubrication performance, so that the workpiece is smooth and precise delivery.

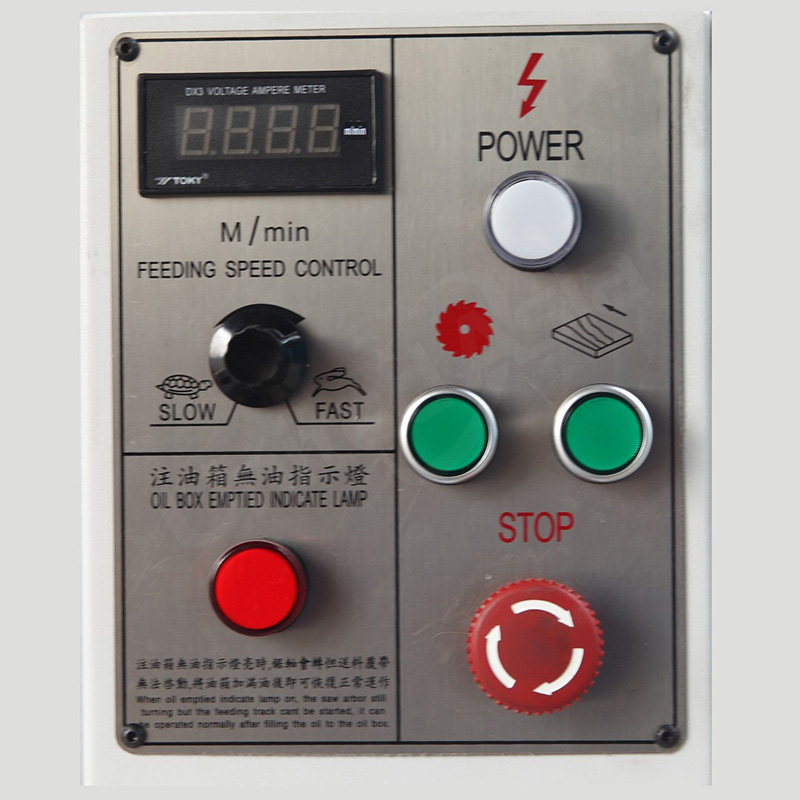

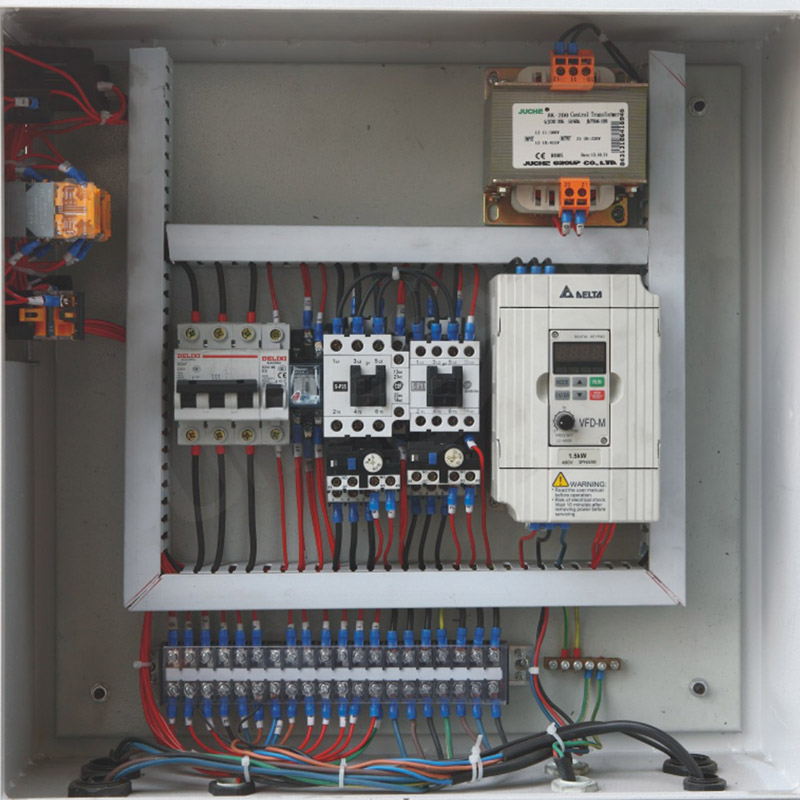

- The use of variable frequency feed, making soft, hardwood sawing speed is reasonable, smooth wood cutting, so that the workpiece size more accurate.

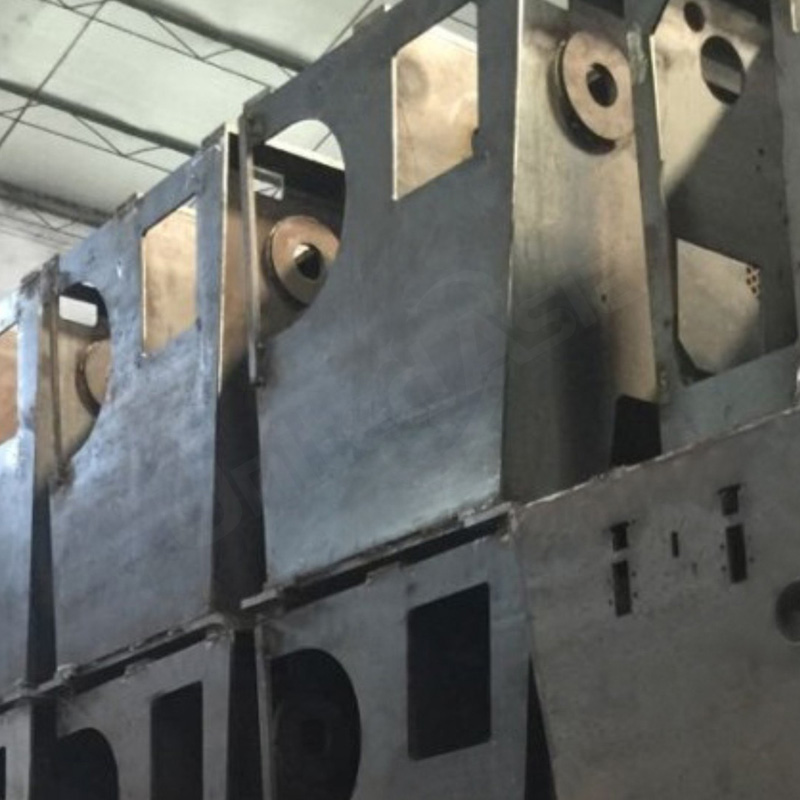

- Body with snap-type laser welding process, high strength, more beautiful.
