MB2063 High Quality Double Side Planer Factory

Short Description:

Don’t hesitate anymore! Our revolutionary MB2063 double side plane solution will change your woodworking experience. With its unmatched precision, efficiency and versatility, our double-sided planing tool is the ultimate companion for all your woodworking projects. Whether you are a furniture maker, carpenter, or hobbyist, this tool is the key to unlocking your full potential and taking your woodworking skills to new heights. About MB2063 double side planer, please contact us for more information.


Product Detail

Product Tags

Details

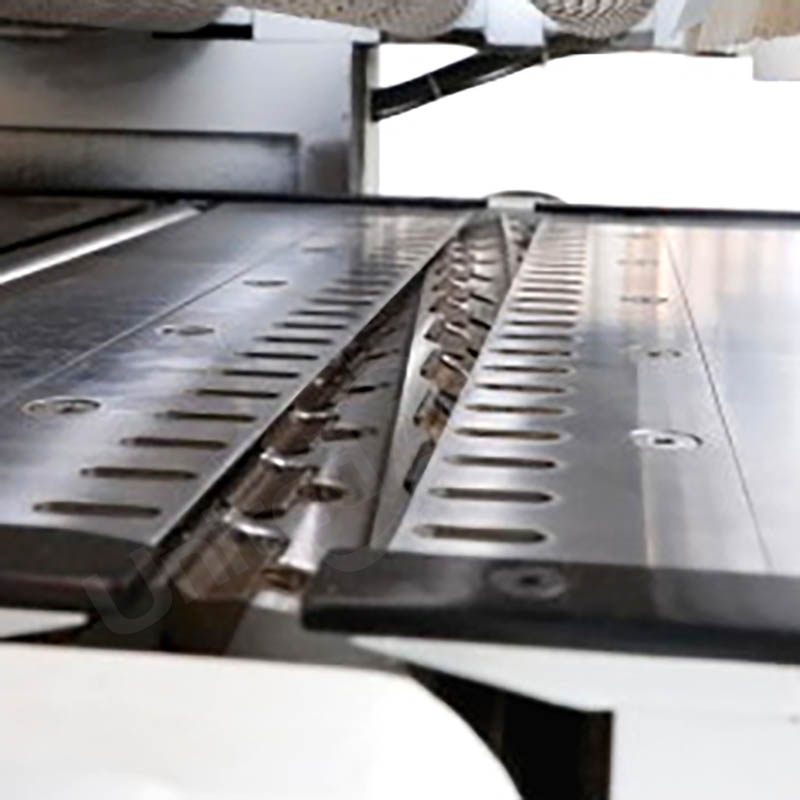

- Standard re-cut spiral cutter.

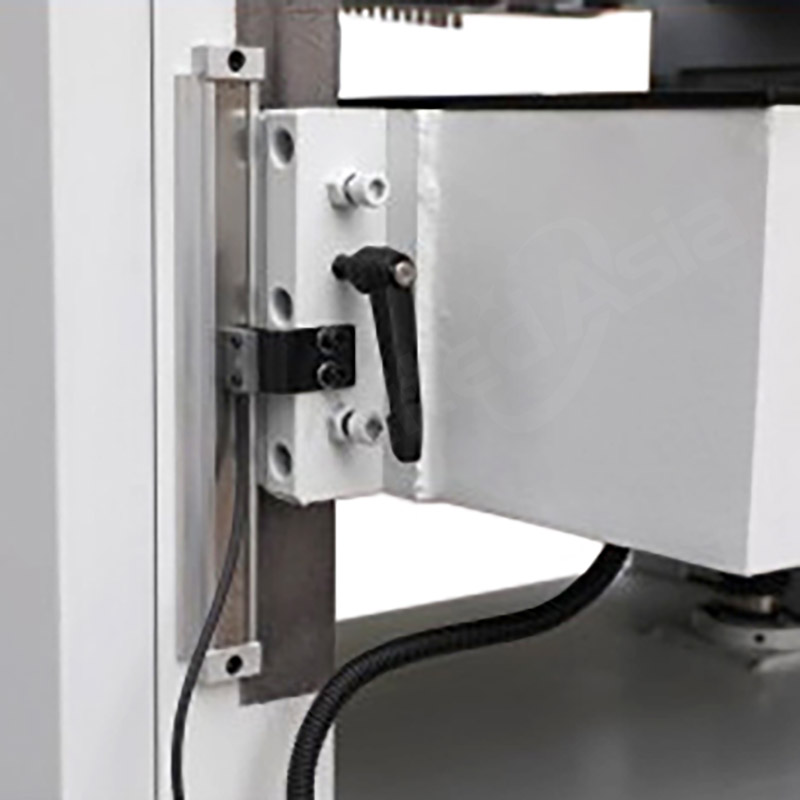

- Work table raster ruler positioning, accurate size.

- The worktable is adjusted manually before cutting.

Parameters

Model

MB2063

Working thickness

8-180mm

Working width

630mm

Min. working length

220mm

Max. cutting depth

Upper knife 4mm

Lower knife 4mm

Cutting spindle diameter

Φ100mm

Cutting spindle speed

6000r/min

Feeding speed

5-15m/min

Upper cutting spindle motor power

10HP

Bottom cutting spindle motor power

5.5HP

Feeding motor power

1HP 1:10

Lifting motor power

1/2HP 1:20

Dust exit diameter

Upper Φ120mm

Lower: Φ100mm

Overall size

1100x1355x1350mm

Packing size

1150x1380x1480mm

Net weight

1060kg

Introduction

Are you tired of the hassle and inefficiency of traditional wood planing methods? Say goodbye to the limitations of traditional planing methods and embrace the future of woodworking. Our MB2063 double side planer has a cast iron bed with good shock absorption and stability, which is processed in one time by a CNC machining center, providing a good foundation for the knife shaft and feeding, which can meet the needs of professional woodworkers and DIY enthusiasts. Whether you are working on a small project or large-scale production, this versatile tool is the perfect addition to your workshop.

MB2063 double side planer With two planing surfaces, you can easily switch between different cutting depths and angles, achieving a seamless and efficient woodworking process, allowing you to get twice the result with half the effort. Say goodbye to uneven surfaces and imprecise cuts. The crawler-type elastic pressure claw (with lifting function) can select the pressing distance of the elastic pressure claw according to the thickness and bending degree of the wood, which greatly improves the processing accuracy of the workpiece and feeds it strongly and powerfully. The knife shaft, pressure roller and smooth feeding mechanism on the machine tool are equipped with manual fine-tuning and motorized mechanisms to make positioning quick and accurate. The upper and lower feeding pressure rollers of the pressure planing part are linked to feed, and the thrust is strong and balanced. The work surface is specially treated with hard chrome plating, wear-resistant and smooth. Our double side planer is designed to provide unparalleled precision and accuracy, ensuring that every piece of wood is planed to perfection. Whether you are building furniture, cabinets or decorations, you can trust that our tools will provide perfect results every time.

Able to handle a variety of wood materials with ease, the MB2063 double side planer's versatility makes it a must-have for any woodworking project. We understand the importance of comfort and ease of use, which is why our double side planer is ergonomically designed to maximize user comfort. Our double-sided planing tools are made from durable, high-quality materials to withstand the rigors of woodworking. You can rely on its durability and longevity, making it a valuable investment for your woodworking endeavors. The product is equipped with a digital display device imported from Taiwan, which can directly operate the processing thickness on the operation panel, with an accuracy of up to 0.1mm, and comes standard with variable frequency speed adjustment for feeding. The standard carbide spiral cutter shaft and high-precision imported bearings provide a very healthy heart for the whole machine. Imported electrical components are used to make the whole machine control sensitive and safe. Whether you're a seasoned professional or a novice woodworker, the MB2063 double side planer allows you to achieve professional-quality results. Its intuitive design and superior performance enhance the quality of your work, earning you the admiration of clients and peers.

Improve your craft, streamline your workflow and achieve perfect results with ease. Join the ranks of satisfied woodworkers and switch to our MB2063 double side planer solution. Don't settle for mediocre woodworking jobs. Achieve excellence, efficiency and innovation with our MB2063 double side planer. Enhance your woodworking experience and unleash your creativity like never before. Invest in the future of woodworking and order your MB2063 double side planer today!

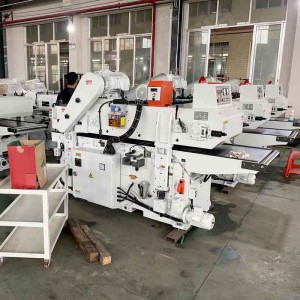

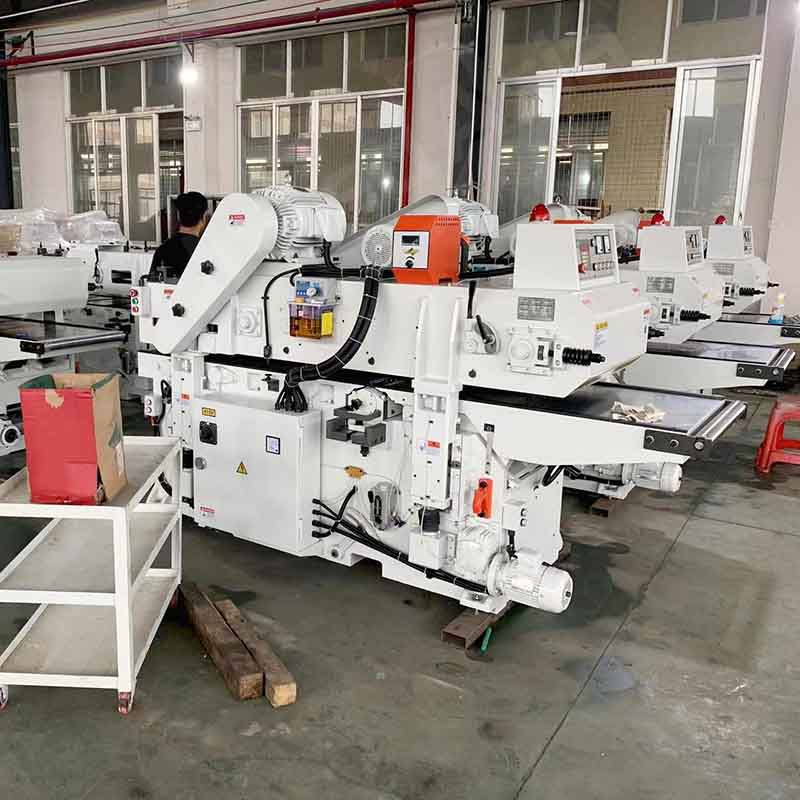

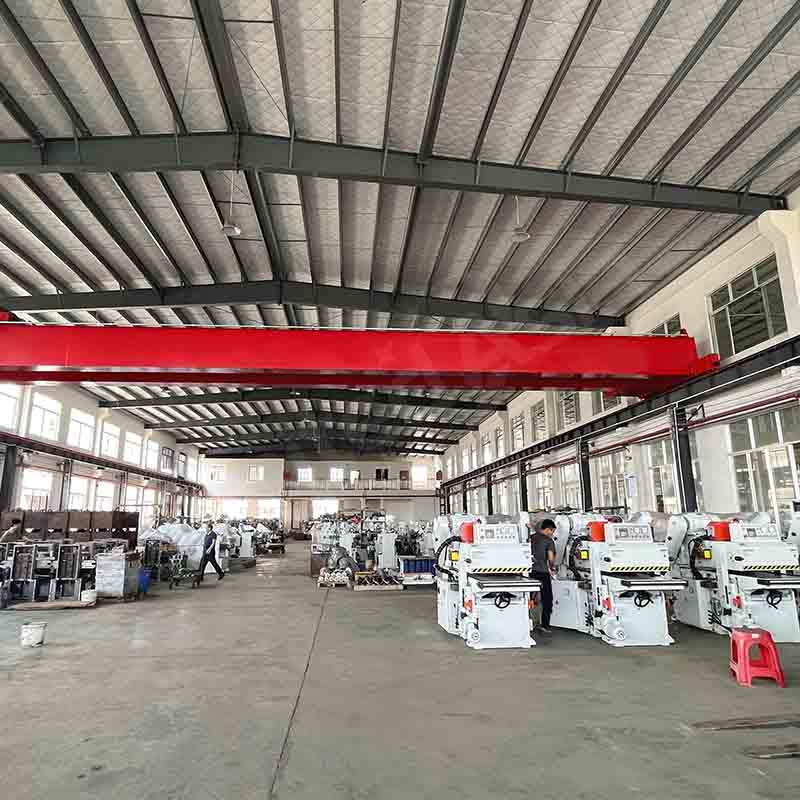

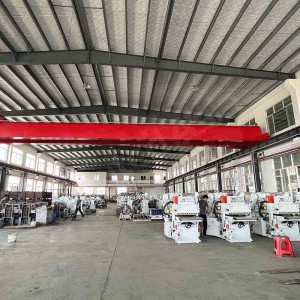

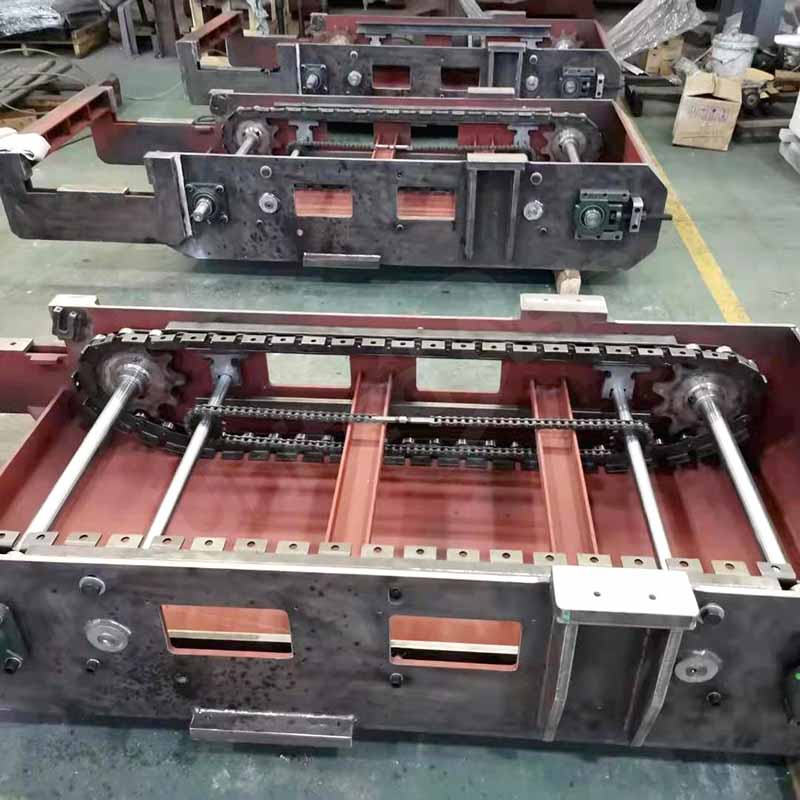

Workshop Shows
