MB2012B High Efficiency Round Wood Cutter Exporters

Short Description:

MB2012B high efficiency round wood cutter is used to process wooden boards into several round bars, which can greatly increase the round bar production output and improve your production efficiency. The machine can also process a single wood core into a single round bar (by replacing the guide plate, knife, and feed wheel to achieve conversion). In addition, the corresponding guide plate and knife must be replaced for each diameter. Take your woodworking to a new level with our precision-engineered round bar machine.


Product Detail

Product Tags

Details

- Double rubber pressure wheels for discharging, effectively protecting the finished product from deformation and vibration.

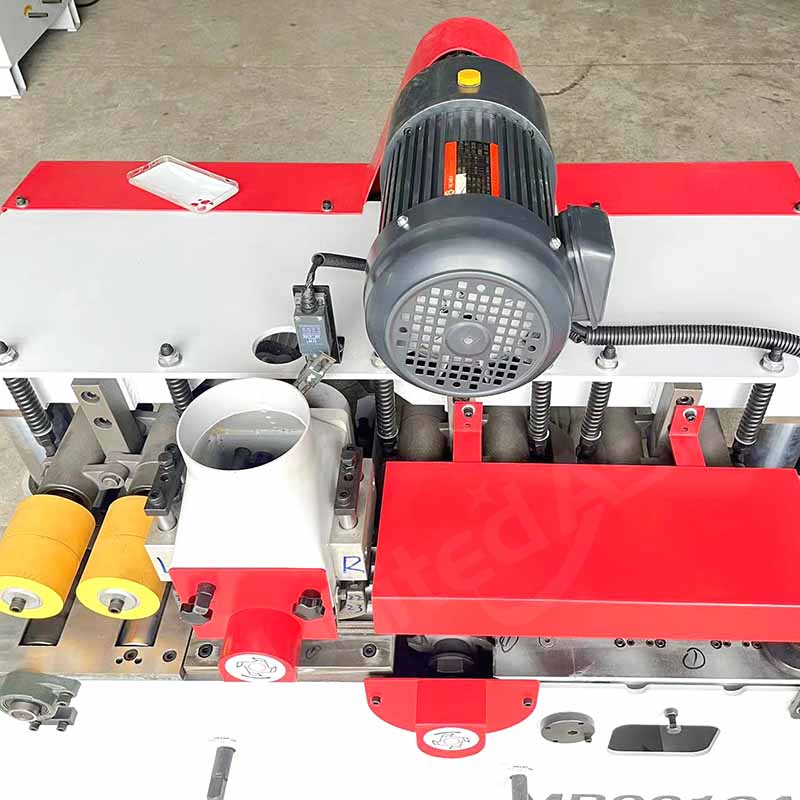

- Three rolled threaded steel rollers for feeding, stable feeding.

- Control panel, easy to operate, easy to learn.

- Pure copper motor with high power and long service life.

- Thickened steel plate workbench, wear-resistant and not easy to deform.

Parameters

Model

MB2012B

Pressing width

10-120mm

Working length

250mm-Max

Round wood cutting diameter

6-45mm

Feeding speed

5-30m/min

(15-30mm/min is the processing of 1 round rods)

Spindle velocity

8500r/min

Blade diameter

30mm

Extraction outlet size

80mm

Spindle motor power

11kW

Feeding motor power

1.5kW (Continuously variable)

Lifting motor power

0.37kW

Overall dimension

1550x900x1250mm

Machine weight

1000kg

Cutter shaft distance

175mm

Introduction

From precision cutting to increased productivity, the MB2012B high efficiency round wood cutter is carefully designed to enhance your craft and deliver exceptional results. Focused on optimizing production efficiency, this machine offers high-speed operation without compromising quality, allowing you to complete large orders with ease.

Our machines are built with durable materials and components, with automatic lifting and variable speed control. The machine is built to withstand the rigors of the industrial woodworking environment, ensuring long-term reliability and minimal downtime. This means our customers can save costs and have peace of mind. The rubber pressure wheel for discharge is strong, prevents vibration and reduces temperature. The three rolled threaded steel roller pressure wheels feed the material, which is stable, fast and not easy to deform. The machine uses high-power pure copper motors for a long service life.

We are committed to ensuring that our customers experience seamless integration of our machines with their woodworking operations, thereby maximizing their productivity and success. When you choose the MB2012B high efficiency round wood cutter, you are investing in a solution that combines precision, efficiency and reliability. We can work with you to create a solution that meets your unique needs and customize our round wood cutter to your specific requirements. Join the ranks of satisfied customers who have experienced the power of our machines in transforming their woodworking capabilities. Consult us to learn about the difference the MB2012B high efficiency round wood cutter can make to your woodworking operation.
