MB2012 High Efficiency Round Wood Cutter Factory

Short Description:

MB2012 high efficiency round wood cutter is suitable for processing medium and thick wood sticks. It can produce different specifications of wooden round sticks, square sticks, round sticks, blinds, decorative wood lines, etc. As a supplier with many years of experience, we provide you with high-quality products and services. With the power of MB2012 high efficiency round wood cutter, achieve your production goals! Please contact us for more information.


Product Detail

Product Tags

Details

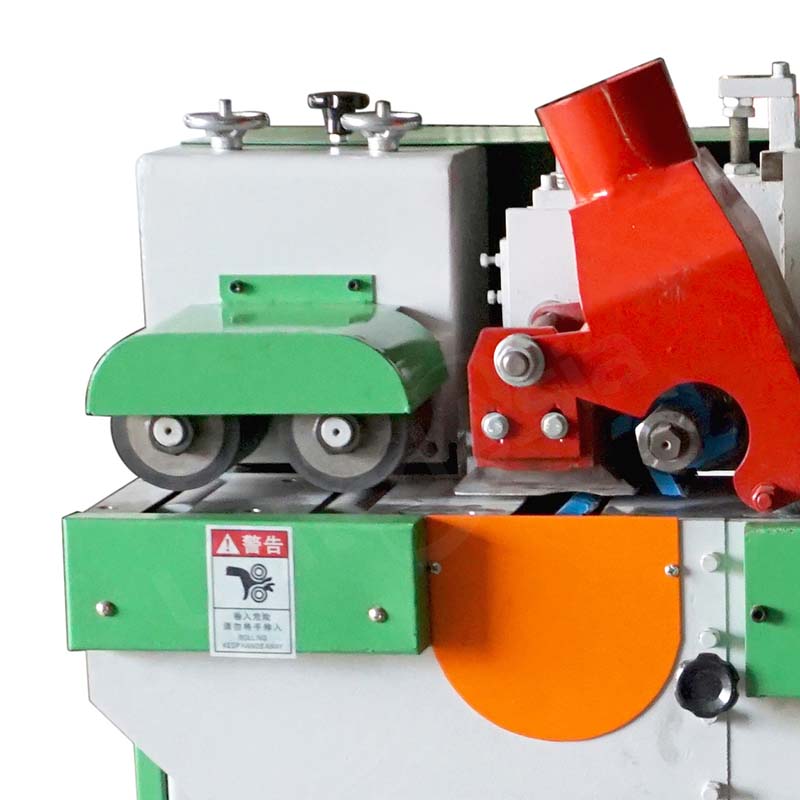

- The rolled threaded steel roller press wheel feeds the material, which ensures stable material pressing and fast feeding speed.

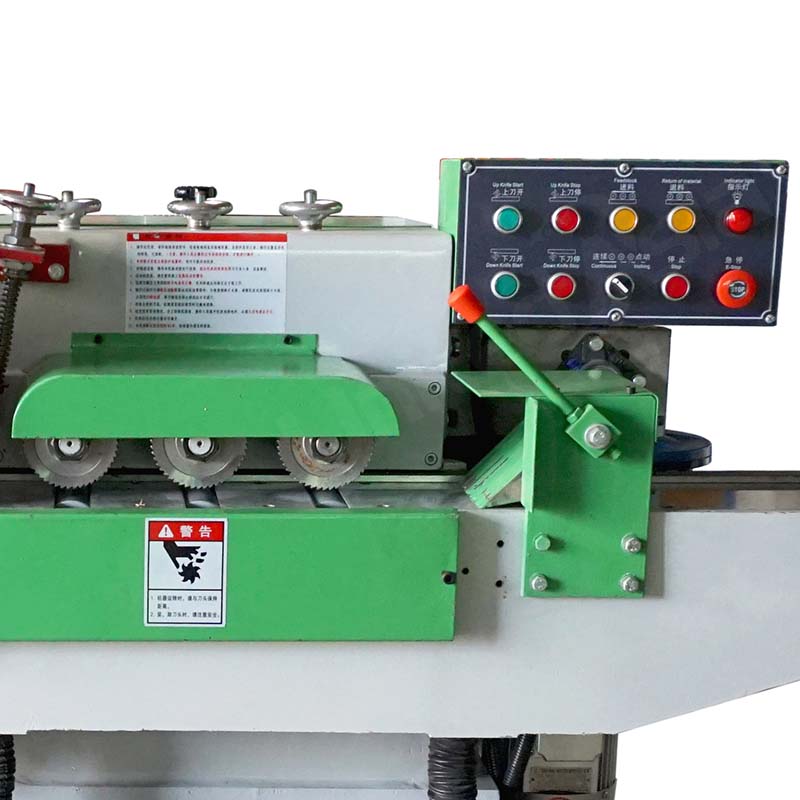

- Independent control panel, simple and convenient, saving time and energy.

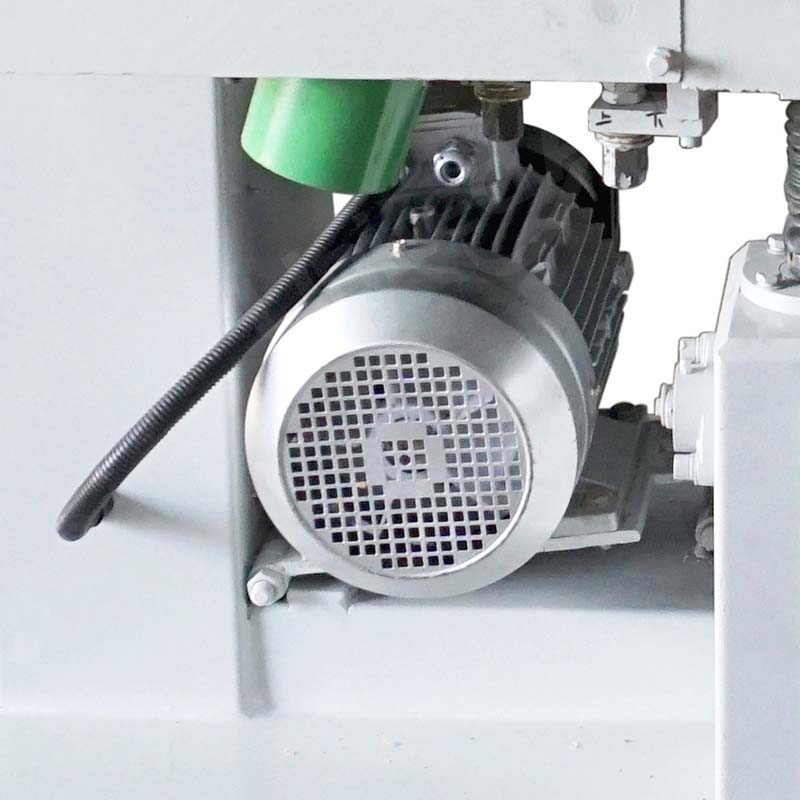

- Powerful motor with all copper core ensures machine operation and high production efficiency.

Parameters

Model

MB2012

Main motor power

12.75kW

Spindle velocity

6000r/min

Round wood cutting diameter

Φ6.0- Φ40mm(Better10-40mm)

Feeding speed

2.5-10m/min

Feeding motor power

1.5kw (Continuously variable)

Working length

200mm-Max

Maximum vertical stroke of working table

65mm

Overall dimension

1780*900*1280mm

Machine weight

1000kg

Pressing width

100mm

Cutter shaft distance

85mm

Introduction

Are you a woodworking enthusiast or professional looking for a reliable tool to take your project to the next level? We recommend our MB2012 high efficiency round wood cutter to help you achieve a breakthrough in production. The chrome-plated table is flat and wear-resistant, and has strong bearing capacity. In a workshop environment, production safety is extremely important, and this machine takes this into consideration. The control panel is an independent switch, which is safe to use, allowing you to work without worries. At the same time, the machine is simple and convenient to operate, and beginners can get started after simple training.

MB2012 high efficiency round wood cutter uses a rolled threaded steel roller pressure wheel to feed the material, which can stabilize the material. The feed wheel is driven up and down, and the feeding speed is fast and not easy to deform. The all-copper motor has a great speed improvement, ensuring that the machine runs smoothly and efficiently. The gear chain is driven synchronously, the running force is uniform and stable, and the drive is smooth and smooth. Heavy-duty and efficient round bar machine, the maximum blade width is 100mm, calculated by the blades on both sides of the knife 5mm, and the blades between the bars are 1.3-1.5mm. Cutting allowance: 1-2mm up and down, 1mm left and right, 1.3-1.5mm blade between rods. Not only does this machine save you time and effort, it also ensures that your finished product is of the highest quality. If you are interested in our MB2012 high efficiency round wood cutter, contact us to order!
