FZB511 Woodworking Tool Auto Edge Bander Machine

Short Description:

With its advanced features and easy operation, the FZB511 auto edge bander will change the way you band edges, letting you achieve perfect results with ease. Automating the process not only saves time and labor, but also ensures consistent, high-quality results every time it is used. From pre-milling and gluing to straight press, beveling press, end cutting, rough trimming, fine trimming, round trimming, scraping, flat scraping, and buffing functions, this machine can handle all aspects of edge sealing accurately and efficiently. Regarding FZB511 auto edge bander, please contact us for more information.


Product Detail

Product Tags

Details

Pre-milling

Gluing

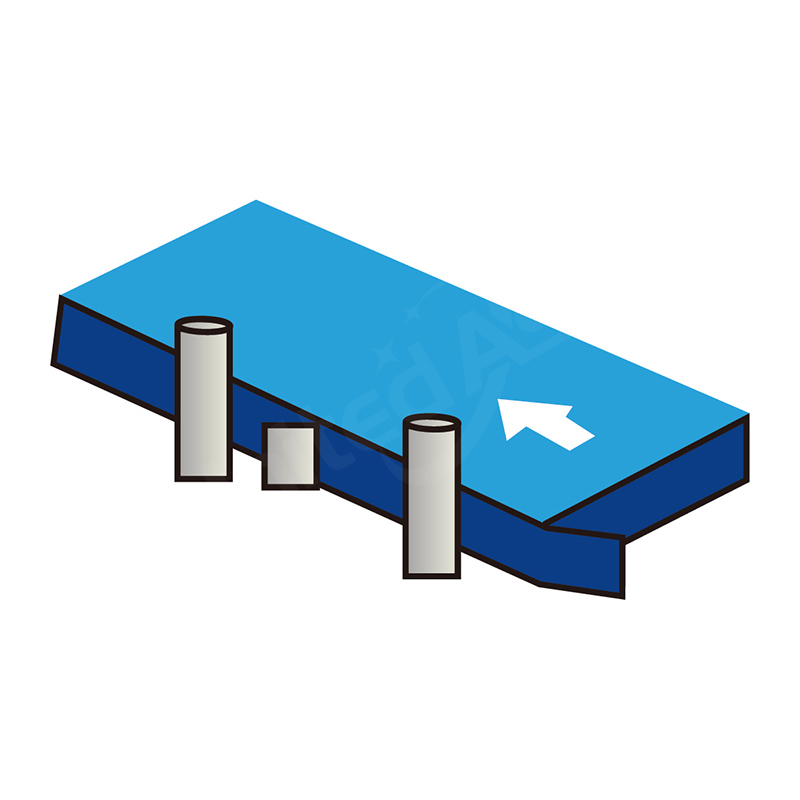

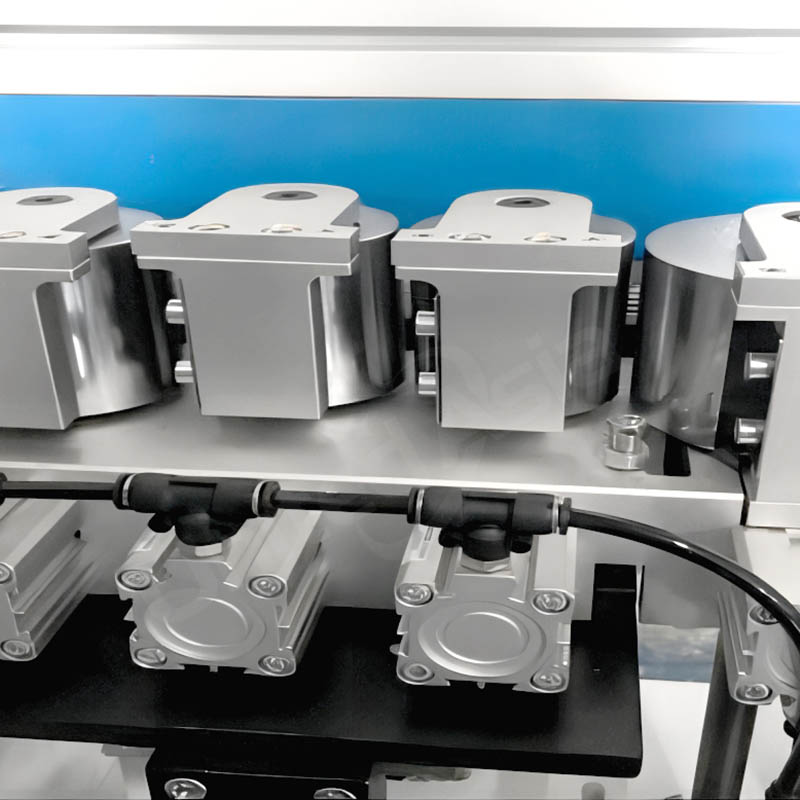

Straight press

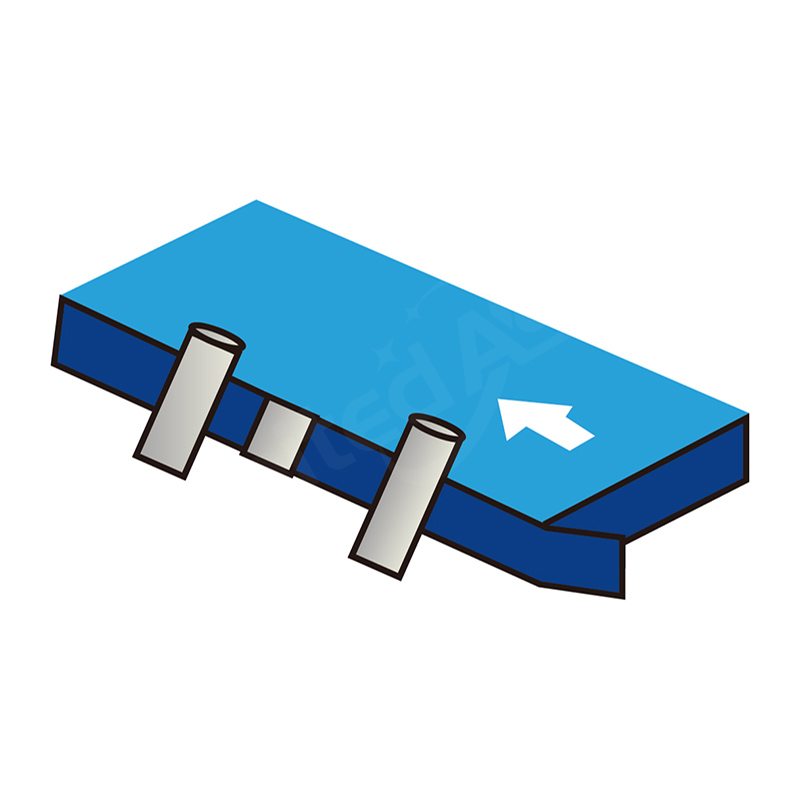

Beveling press

End cutting

Rough trimming

Fine trimming

Round trimming

Scraping

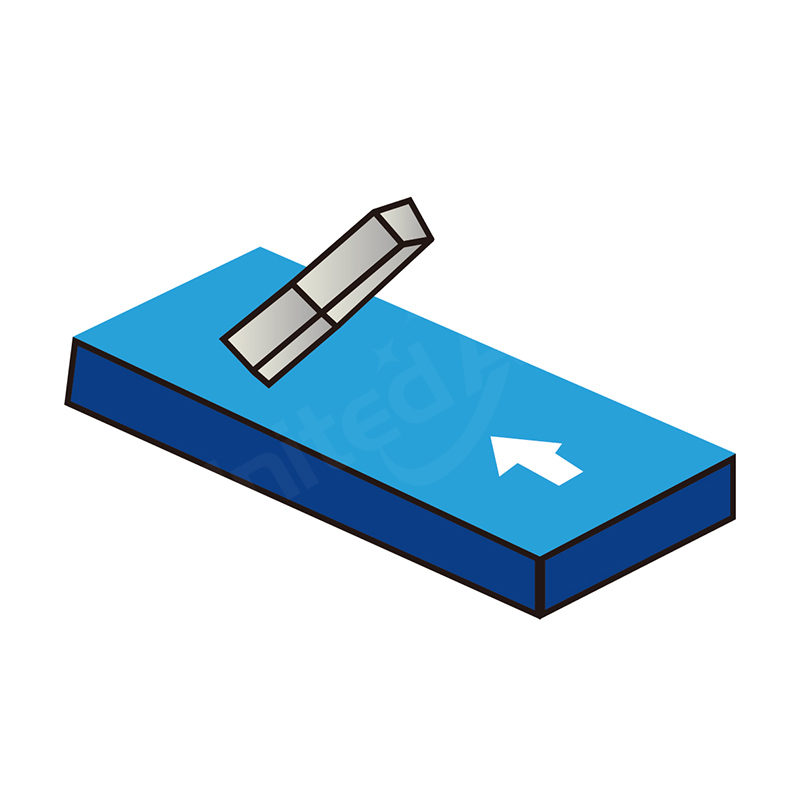

Flat scraping

Buffing

- Pre-milling device, using double milling cutters, reprocessing the wave marks, non-vertical phenomena when sawing the board, burrs, burrs and broken edges, etc., to improve the accuracy of the board and achieve better edge banding effect.

- Gluing device, evenly apply glue to the side of the board. At the same time, pressing can make the edge banding and the board bonded together, and the bonding force is stronger.

- Straight press and Beveling press devices, in addition to straight edge banding, can also perform special bevel edge banding to achieve 0-55 degree edge banding effect.

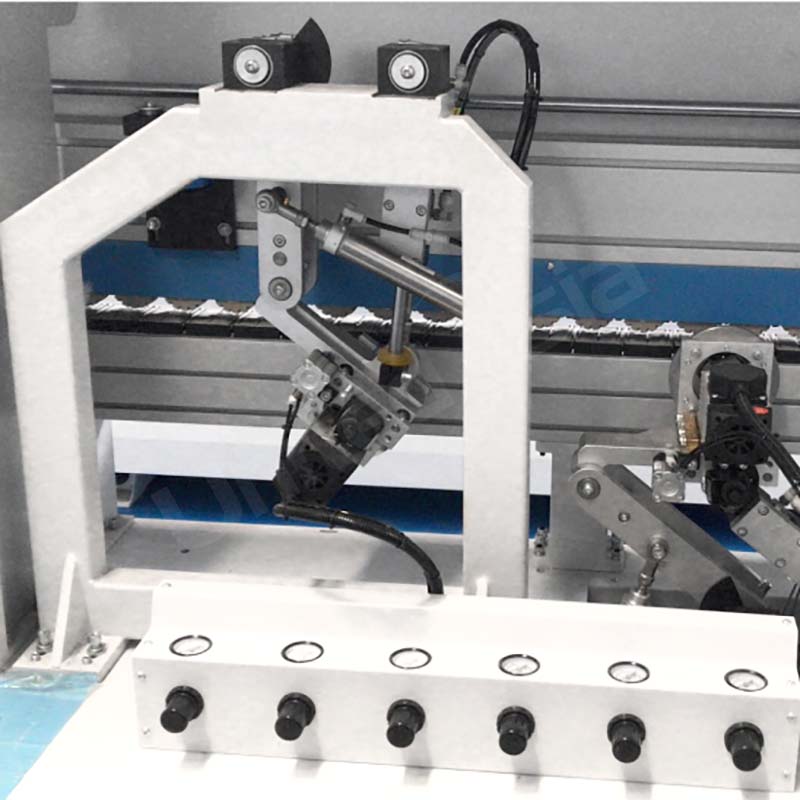

- End cutting device, through precise linear guide movement, using automatic tracking of the mold and high-frequency high-speed motor fast cutting structure to ensure that the cut surface is flat and smooth.

- Rough trimming device, to ensure the flatness and smoothness of the upper and lower parts of the board trimming, used to trim the excess edge banding strips on the upper and lower parts of the processed board.

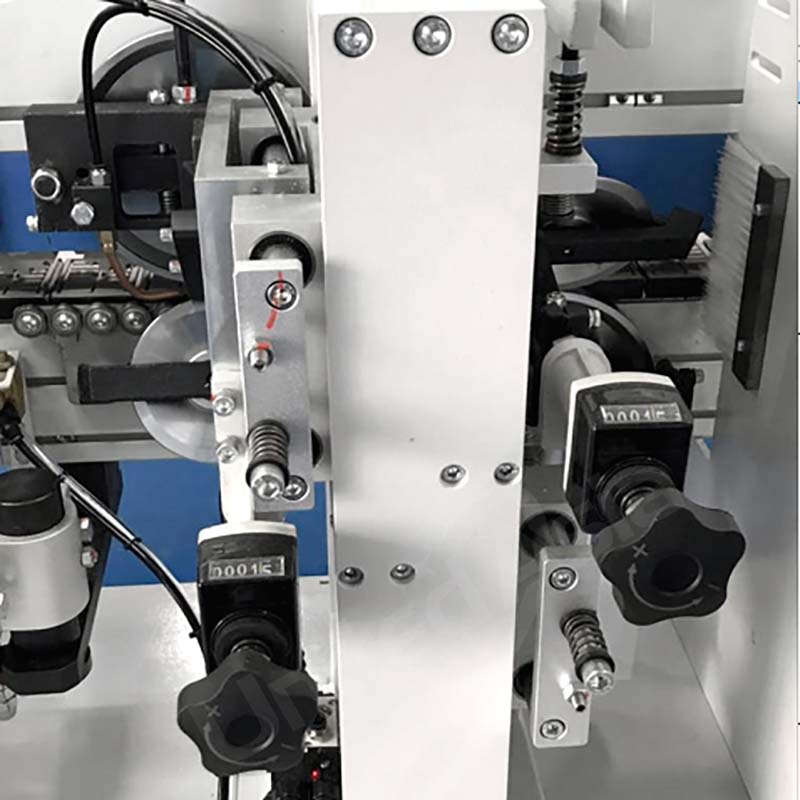

- Fine trimming device, fine trimming of the reserved part after rough trimming.

- Round trimming device, rounding the upper and lower corners, can make the end face of the board smoother and more beautiful.

- Scraping and Flat scraping devices are used to eliminate the ripple marks caused by the non-linear cutting process of trimming, making the upper and lower parts of the board smoother and neater.

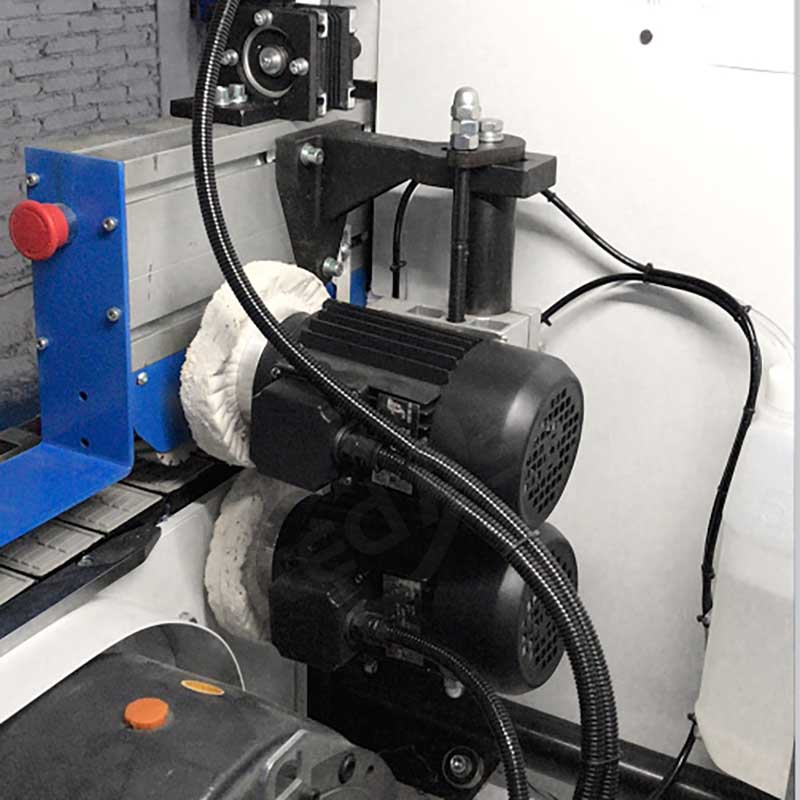

- Buffing device, using cotton polishing wheels to clean the processed board, and buffing to make the edge surface smoother.

Parameters

Model

FZB511

Total power

20.6kW

Overall size

7800x950x1695mm

Feed speed

16-23m/min

Edge thickness

0.4-3mm

Panel thickness

9-60mm

Panel length

≥100mm

Panel width

≥80mm

Weight

2700kg

Introduction

Achieve efficient, precise and professional-quality finishes with simple operation. This FZB511 auto edge bander simplifies the entire edgebanding process, giving you professional-quality results in no time. With a host of advanced features, the Auto Edge Bander is an indispensable and versatile tool for woodworkers of all skill levels.

One of the standout features of the FZB511 auto edge bander is its pre-milling function, which ensures that the edges of your workpieces are completely smooth. This not only improves the overall quality of the finished product, but also reduces the need for additional sanding and refining, saving you valuable time and energy. The machine's gluing function is designed to apply a consistent and even layer of adhesive to the edge of your workpiece, ensuring a strong and lasting bond. This eliminates the risk of uneven or weak adhesion for a long-lasting, professional result. Whether you need a straight edge or a beveled edge, the straight press and beveling press functions allow you to achieve clean, precise edges. By customizing the angle and depth of the bevel, you have complete control over the final look of your project. When it comes to trimming, the FZB511 auto edge bander offers a comprehensive range of options, including end cutting, rough trimming, fine trimming, round trimming, scraping, flat scraping, buffing, and more. These features enable you to achieve perfectly trimmed and polished edges, with the flexibility to choose the level of detail and smoothness that best suits your project.

In addition to an impressive array of features, the machine is designed with user-friendly controls and intuitive operation, making it accessible to woodworkers of all experience levels. Whether you are a professional woodworker looking to increase productivity and precision, or a hobbyist looking to improve the quality of your projects, the FZB511 auto edge bander is a game changer in the world of woodworking. Invest in an auto edge bander and experience the power of woodworking automation. Enhance your woodworking projects and eliminate the hassle of edgebanding with this indispensable machine. Place your order for the FZB511 auto edge bander now!
