FZB508 Auto Wood Edge Banding Equipment Manufacturers

Short Description:

Create a new era of woodworking excellence with our cutting-edge technology. With its comprehensive features, our FZB508 auto edge bander is the ultimate solution for woodworking professionals and enthusiasts. Whether you are working on cabinets, furniture or other woodworking projects, this machine will revolutionize the way you edge band wood. Please consult us for more details of FZB508 auto edge bander, and welcome to place an order and let us be your partner.


Product Detail

Product Tags

Details

Pre-milling

Gluing

End cutting

Rough trimming

Fine trimming

Round trimming

Scraping

Buffing

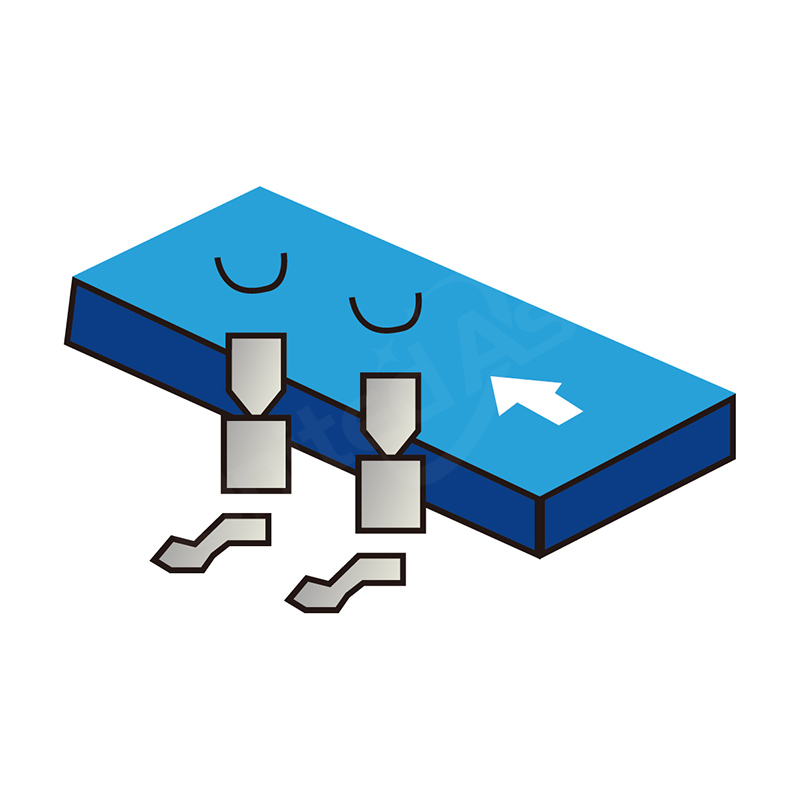

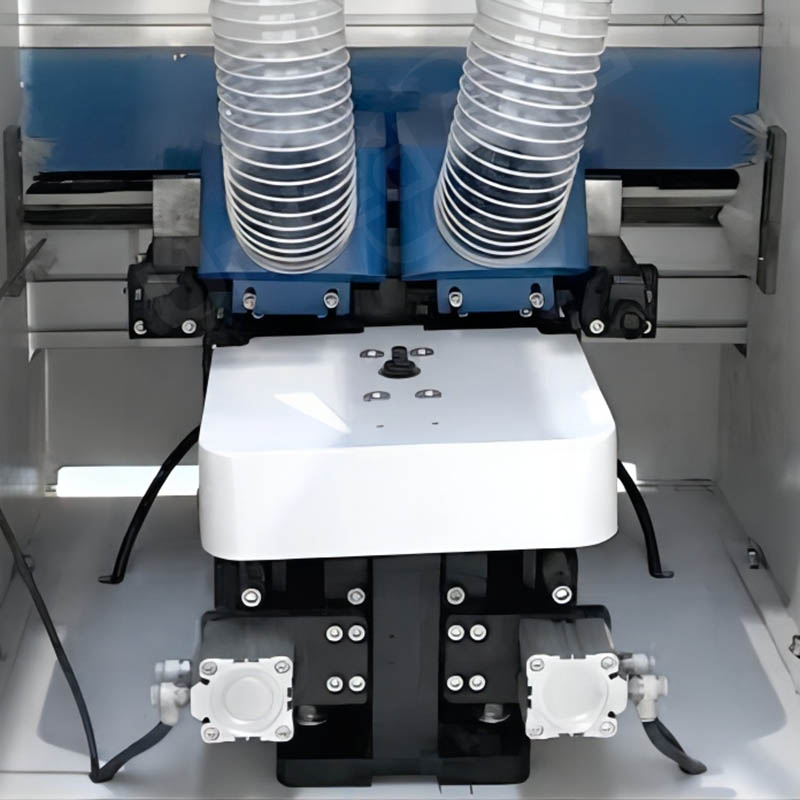

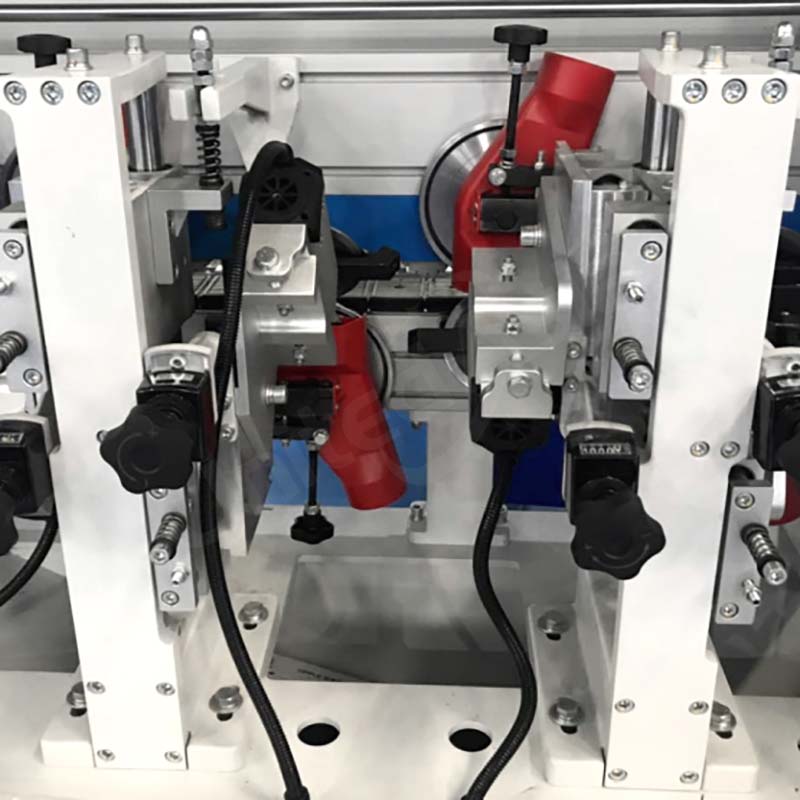

- Pre-milling device, using double milling cutters, reprocessing the wave pattern marks, non-vertical phenomena when sawing the board, burrs, burrs and broken edges, etc., to improve the accuracy of the board and achieve better edge banding effect.

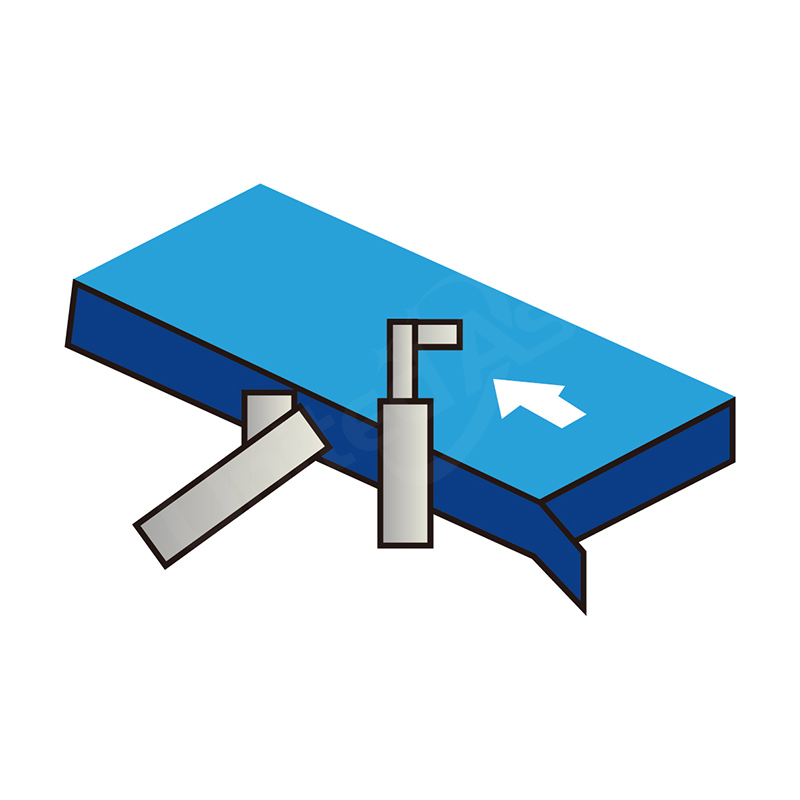

- Gluing device, evenly apply glue to the side of the board. At the same time, pressing can make the edge banding and the board bonded together, and the bonding force is stronger.

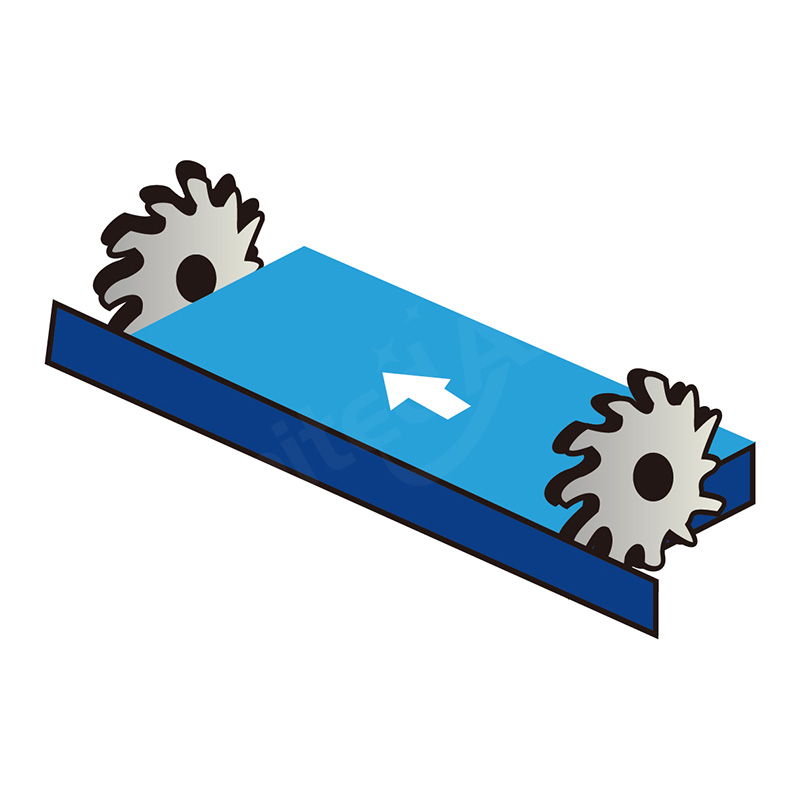

- End cutting device, through precise linear guide movement, using automatic tracking of the mold and high-frequency high-speed motor fast cutting structure to ensure the smoothness of the cut surface.

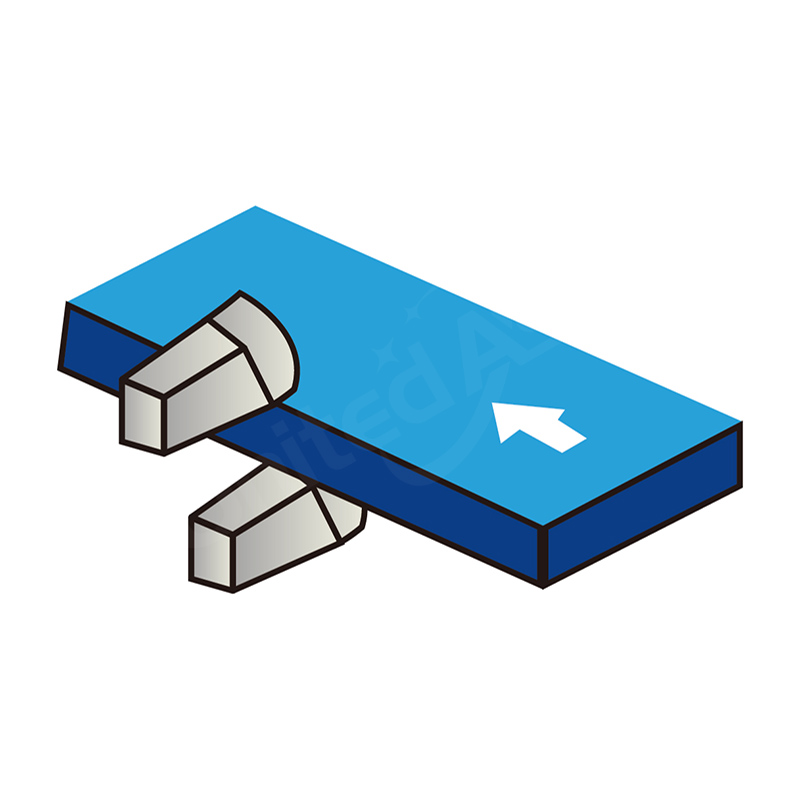

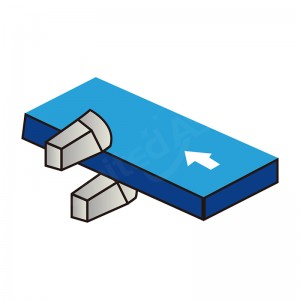

- Rough trimming device, ensuring the smoothness of the upper and lower parts of the board trimming, used to trim the excess edge banding margins on the upper and lower parts of the processed board.

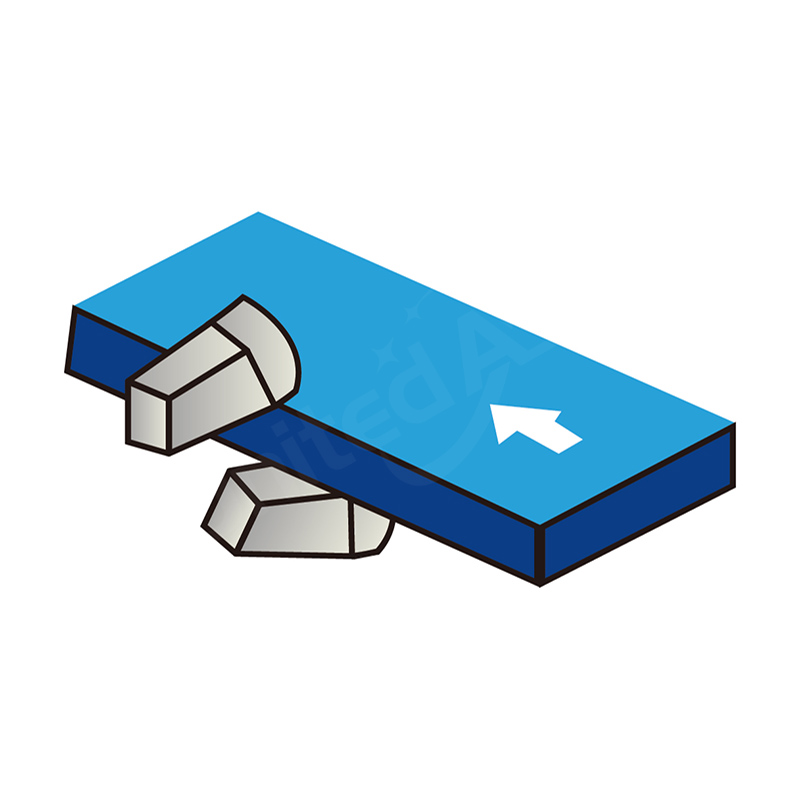

- Fine trimming device, fine trimming of the reserved part after rough trimming.

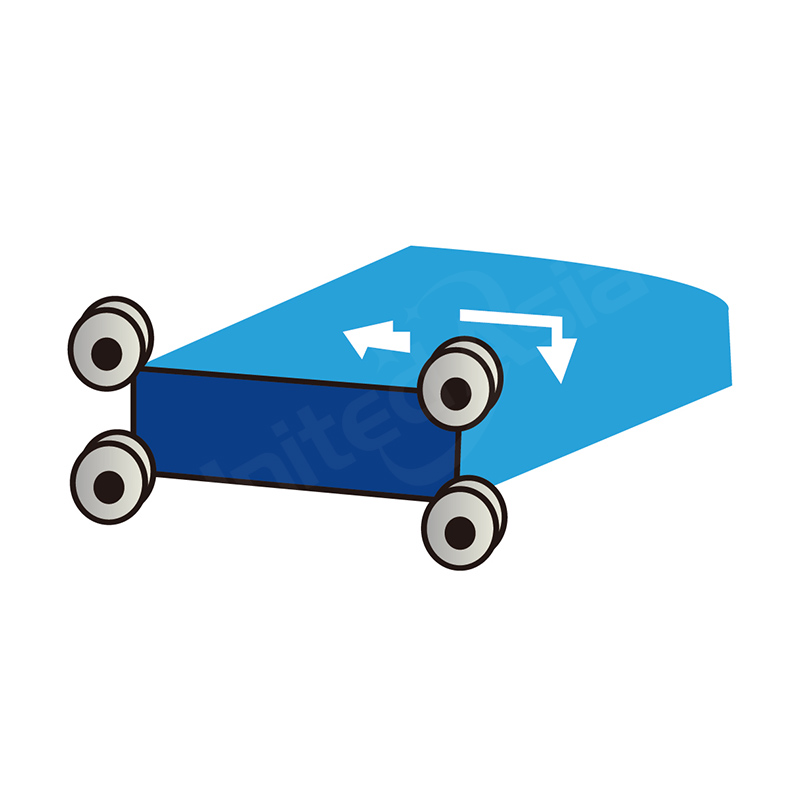

- Round trimming device, rounding the upper and lower corners, can make the end face of the board smoother and more beautiful.

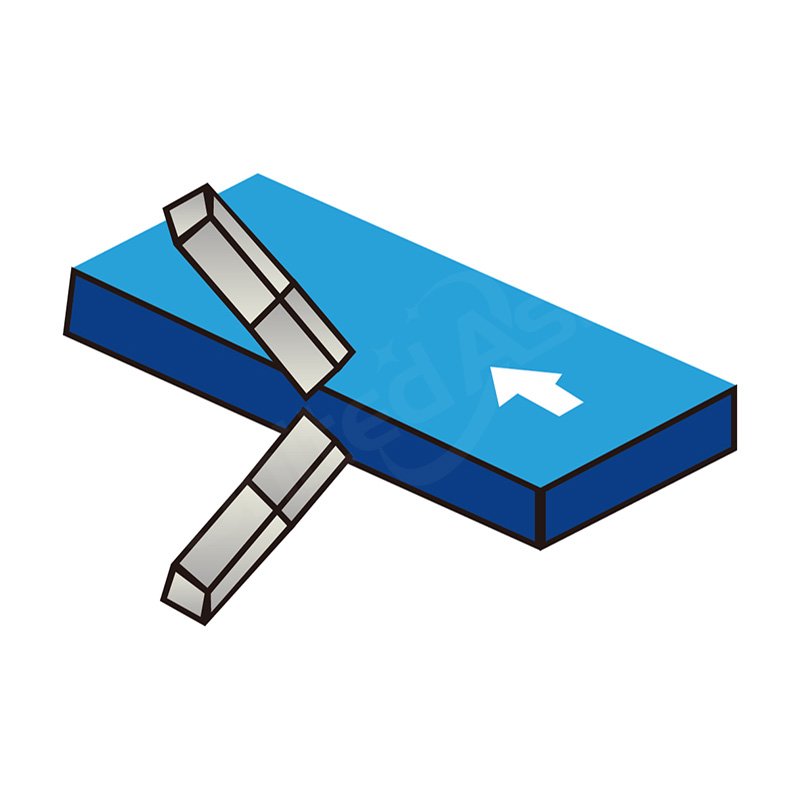

- Scraping device, used to eliminate the ripple marks caused by the cutting process of non-linear motion of trimming, making the upper and lower parts of the board smoother and neater.

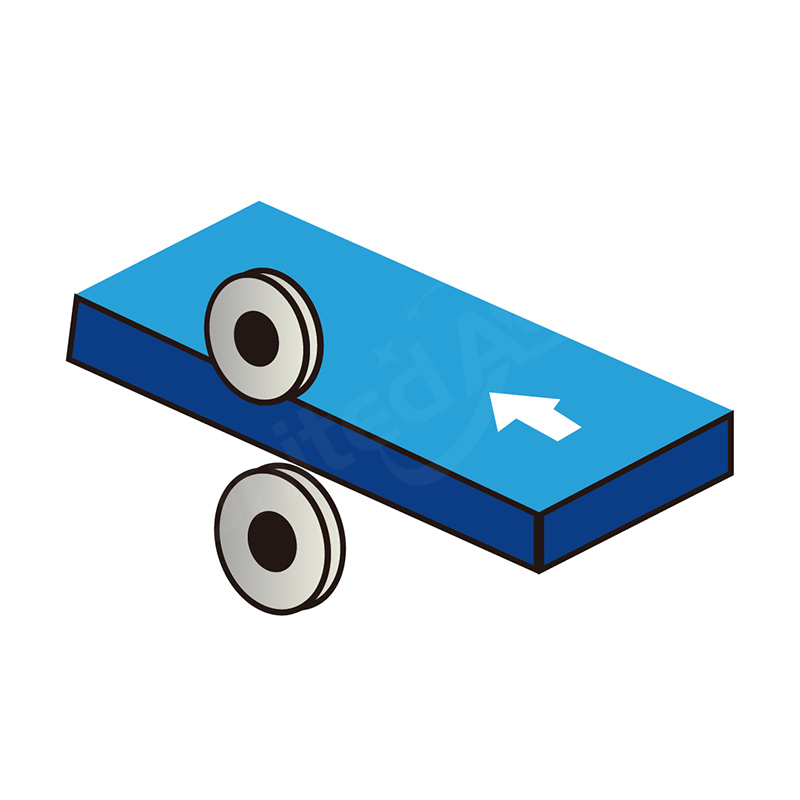

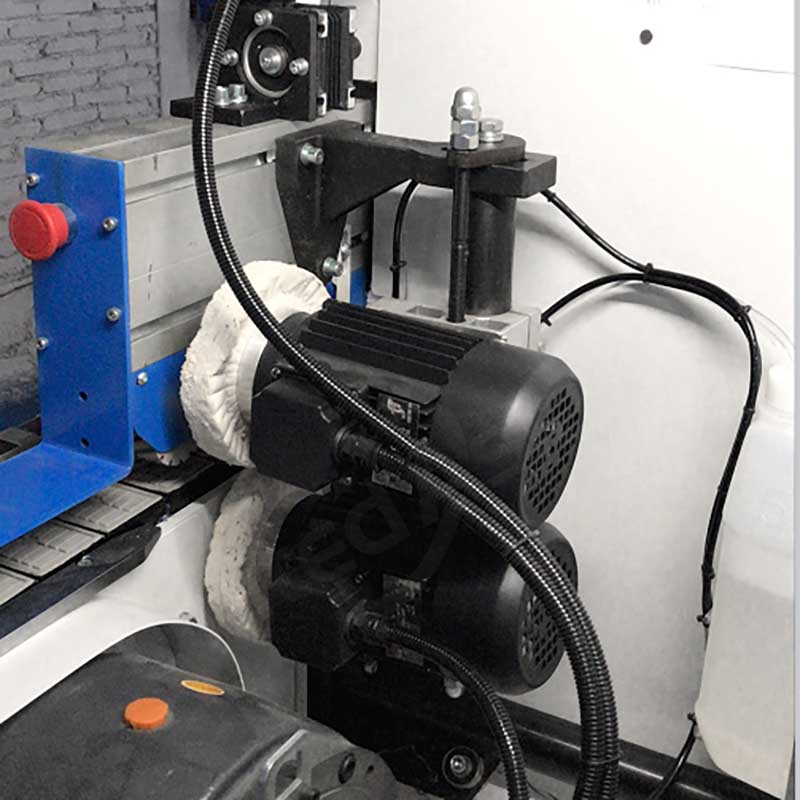

- Buffing device, use cotton polishing wheel to clean the processed board, and make the edge surface smoother through buffing.

Parameters

Model

FZB508

Motor power

15.6kW

Overall size

6800x1100x1600mm

Feed speed

12-20m/min

Panel thickness

10-60mm

Edge banding tape thickness

0.4-3mm

Panel width

≥80mm

Working air pressure

0.8MPa

Weight

2800kg

Introduction

Are you tired of spending countless hours manually trimming and finishing your woodworking projects? Say goodbye to the tedious and time-consuming process with the high-quality FZB508 auto edge bander. Capable of simplifying and enhancing your woodworking experience, this machine is equipped with a host of advanced features to take your craft to the next level.

The Pre-milling function ensures your workpiece is fully prepared for the edge banding process, resulting in a smooth, professional finish. Say goodbye to messy and uneven gluing. The Gluing system of our FZB508 auto edge bander ensures consistent and reliable adhesive coverage, resulting in a strong, durable edge bond. Trim away excess edge banding with ease and precision. The End cutting function ensures a clean, even edge, eliminating the need for manual trimming and reducing material waste. Perfect the edges of your workpiece with the rough trimming function. This function quickly and efficiently removes excess edge banding. Achieve impeccable edge quality with fine trimming. This precise trimming process ensures that your edges are smooth, seamless, and ready for the next stage of machining. Add a professional touch to your woodworking projects with the round trimming function. This function creates beautifully rounded edges that enhance the overall beauty of your workpiece. Use the scraping function to remove any remaining imperfections and excess material. This ensures that your edges are completely smooth without any irregularities, ready for the final stage of machining. Achieve a flawless finish with the buffing function. This function adds the final touch of refinement to your edges, resulting in a professional and high-quality look.

Intuitive controls and a user-friendly interface make operation simple and efficient, allowing you to focus on your process without unnecessary complications. The future of your woodworking business with our FZB508 auto edge bander. Experience the unmatched efficiency, precision and quality this machine brings to your shop. If you are interested in our FZB508 auto edge bander, please contact us for more information.
