FZB505 China Woodworking Automatic Edge Banding Machine

Short Description:

Do you want to achieve professional results without the hassle and frustration of traditional methods? Our advanced FZB505 automatic edge bander is your best choice. This machine with Gluing, End cutting, Fine trimming, Scraping, Buffing devices can simplify the edge banding process, saving you time and energy while providing perfect results. Invest in the future of your woodworking projects with our woodworking edge banding machine. If you are interested in our FZB505 automatic edge bander, please contact us to learn more.


Product Detail

Product Tags

Details

Gluing

End cutting

Fine trimming

Scraping

Buffing

- Control panel, convenient and easy to use.

- Gluing device, fast and even glue application.

- End cutting device, completes the cutting of excess edge banding strips at the front and back of the board, making the front and back sections neat.

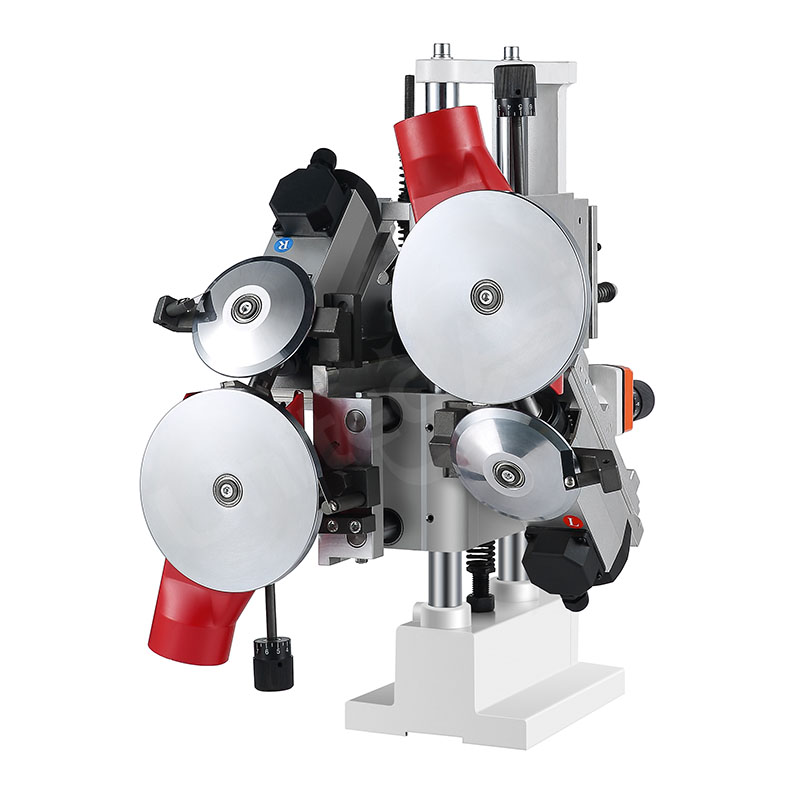

- Fine trimming device, the tool is made of high-hardness alloy, fine trimming.

- Scraping device, makes the upper and lower parts of the board smoother and neater.

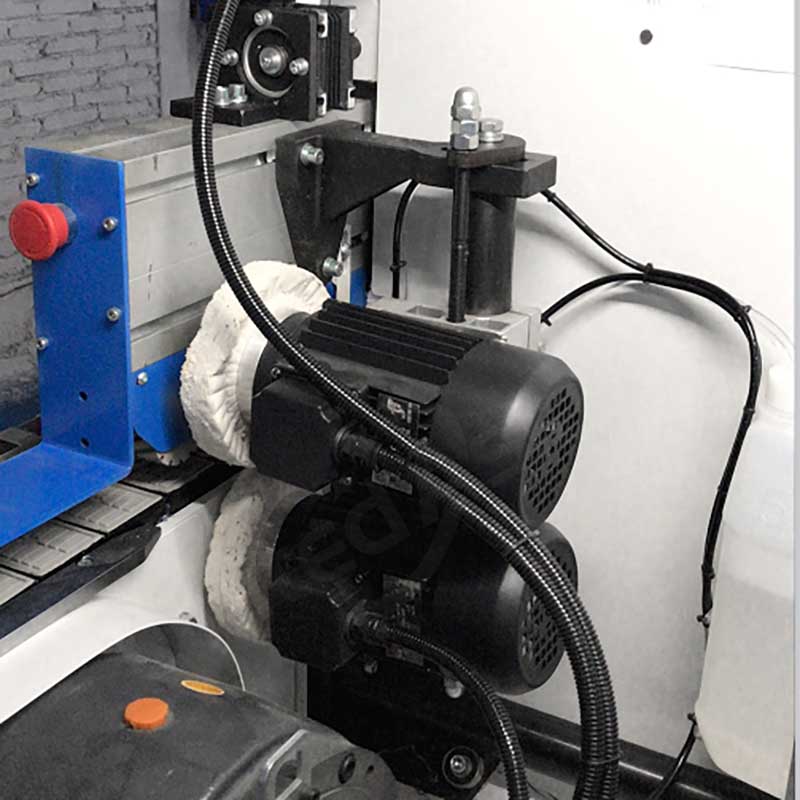

- Buffing device, polishing and grinding after scraping, making the trimmed arc smoother and brighter.

Parameters

Model

FZB505

Motor power

9.2kW

Overall size

4150x1100x1600mm

Feed speed

12-20m/min

Panel thickness

10-60mm

Edge banding tape thickness

0.4-3mm

Panel width

≥40mm

Working air pressure

0.8MPa

Weight

1900kg

Introduction

Are you tired of spending countless hours manually applying edge banding to your woodworking projects? Our FZB505 automatic edge bander is equipped with a host of advanced features that make it the ultimate tool for any woodworking enthusiast or professional. From gluing and end cutting to fine trimming, scraping, and buffing, this machine does it all with precision and efficiency. Let's take a closer look at what makes this automatic edge bander different from other edge banders.

Say goodbye to messy and uneven bonding. Our FZB505 automatic edge bander features a precise and adjustable gluing system that ensures that glue is applied evenly and evenly along the edge of the workpiece. This creates a strong and lasting bond between the edge banding and the substrate, providing a professional finish that stands the test of time. With the end cutting function of our automatic edge bander, excess edge material is cut flush, leaving a smooth and flawless edge ready for the next step of the finishing process. This eliminates the need for manual trimming and sanding, saving you valuable time and energy. The fine trimming function of the FZB505 automatic edge bander takes your woodworking projects to the next level. The stable frame design reduces the jitter of the tool during high-speed cutting, which leads to unstable trimming quality. The design of the tool edge is optimized to make the workpiece more perfect after edge banding. Removing excess material and obtaining a clean, even edge is essential to achieving professional-looking results. The machine is equipped with a scraping function, which solves the problem of heavy glue lines. At the same time, the remaining excess edge band is trimmed again to make the edge banding more beautiful. The last step to turn your woodworking project into reality. This automatic edge bander features a polishing function that adds a smooth, shiny surface to the edge of your workpiece. This step enhances the overall appearance of the edge banding, giving it a professional and sophisticated look that will impress even the most discerning eye.

The automatic edge bander's intuitive controls and ergonomic design make it easy to operate, while built-in safety features ensure peace of mind during use. Whether you're an experienced woodworking professional or a hobbyist looking to improve your craft, this machine is the perfect addition to your workshop. Experience the difference for yourself with our FZB505 automatic edge bander and take your woodworking to new heights. Say goodbye to tedious, time-consuming edge banding methods and hello to efficient, precise, professional results. Place your order for the FZB505 automatic edge bander today!
